Tripod Turnstile

Tripod turnstile is a controlling device. Which designed for pedestrian access control. It is used in gymnasium, tourist attractions, factory, train, station, and so on. Indoor and outdoor, Tripod turnstile is a most effective-cost way to control pedestrian access. high reliability.

Tripod turnstile gates offer dissuasive automated access control for sites with heavy use. Well-built for increased durability, they efficiently control high throughput. Since they can be installed inside or outside buildings, they provide control of occasional user abuse. This is simple, economical and compact equipment.

Features:

1. The turnstile is intended for facilities with high traffic capacity: stadiums, universal sports complexes, exhibition centers, concert halls, cultural and educational institutions, transport facilities, etc.
2.  Full-featured integrated access control software;
3.  The integrated reader is designed to read contactless cards and all types of barcodes;
4.  The interactive screen supports graffic and video display;
5.  Convenient and user friendly management interface + API for connecting an external ACS;
6.  High capacity. Instant triggering when a card or ticket is presented;
7.  A two-way intelligent light display module shows the direction of passage and ticket category;
8.  A patended unique anti-panic system-when alarm is triggered, the arms move to the lower position, therby ensuring an unobstructed passage;
9.  A dapted to work in extreme conditions. Outdoor operation is possible both in the conditions of the Siberian winter and the heat, humidity and dust of Qatar.

1.  Only authorized persons can enter through the turnstile. The Three Arm Rod Runing to achieve the purpose such as anti-tailing.

2. Using the multiple anti-clamping designs to protect the personal safety of passengers in maximum limit.

3.  The widen lane is optional for carrying luggage and wheelchair access.

4. Equipped with the dry contact signal input interface, compatible with all kinds of access controllers.

5. It with LED display screen and speaker to display the user information (which can be customized)

6. after scaning card in normal condition, if within the permitting time passengers do not pass, the system will cancel the ” pass right and arm close automatically.

7. Arm automatically open when the power off to make sure safety In case of emergency.

8. optional for external counter to record the people numbers for each lane.

1. Advantage:

The electric control adopts AC/DC motor to drive stable and reliable, and has low failure rate. with ultra high light traffic indicator.

2. Remind function:

In the case of a man who does not swipe the card, the alarm will prompt the traveler to swipe card.

3. Alarm Function:

When a pedestrian swipes the card, the device alarms the alarm.

4. Check the following function:

The device will alarm when first people swipe the card when second people doesn’t.

5. The automatic delay function:

prevent people not hitting.

6. Various control functions:

By set the setting, the brake machine can be set at special time to be a regular open mode.

7. The mode of choice:

To meet the different requirements, set up as a two-way credit/ one-way credit card/free pass.

8. Various control functions:

external button, remote control, bar code, IC or ID card, etc.

Functions and features:

1. Designed reasonable and reliable movement, noise, smooth running, and long service life.
2. Access prompt function: Red and green light prompt the passing information.
3. The programmable gates control state, with a variety of operating modes you can chose, you can set a one-way or two-way control.
4. Installation with personalized interfac, compactible with IC,ID cards and other smart cards.
5. standard input and output interface
6. Scour protecton function, when the gate signal is not received, the stick is automatically locked
7. Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board
8. Self-test failure alarm function, user-friendly maintenance and use.
9. With the [power drop-shot function. In case of power off, the railing falls, and in case of power on, the railing automatically rise.
10. Counting function: record the passing times, LED digital display function(optional)
11. Waterproof, sunscreen, cold and high temperature.

Product Technical Parameters

Mechanical Parameters:

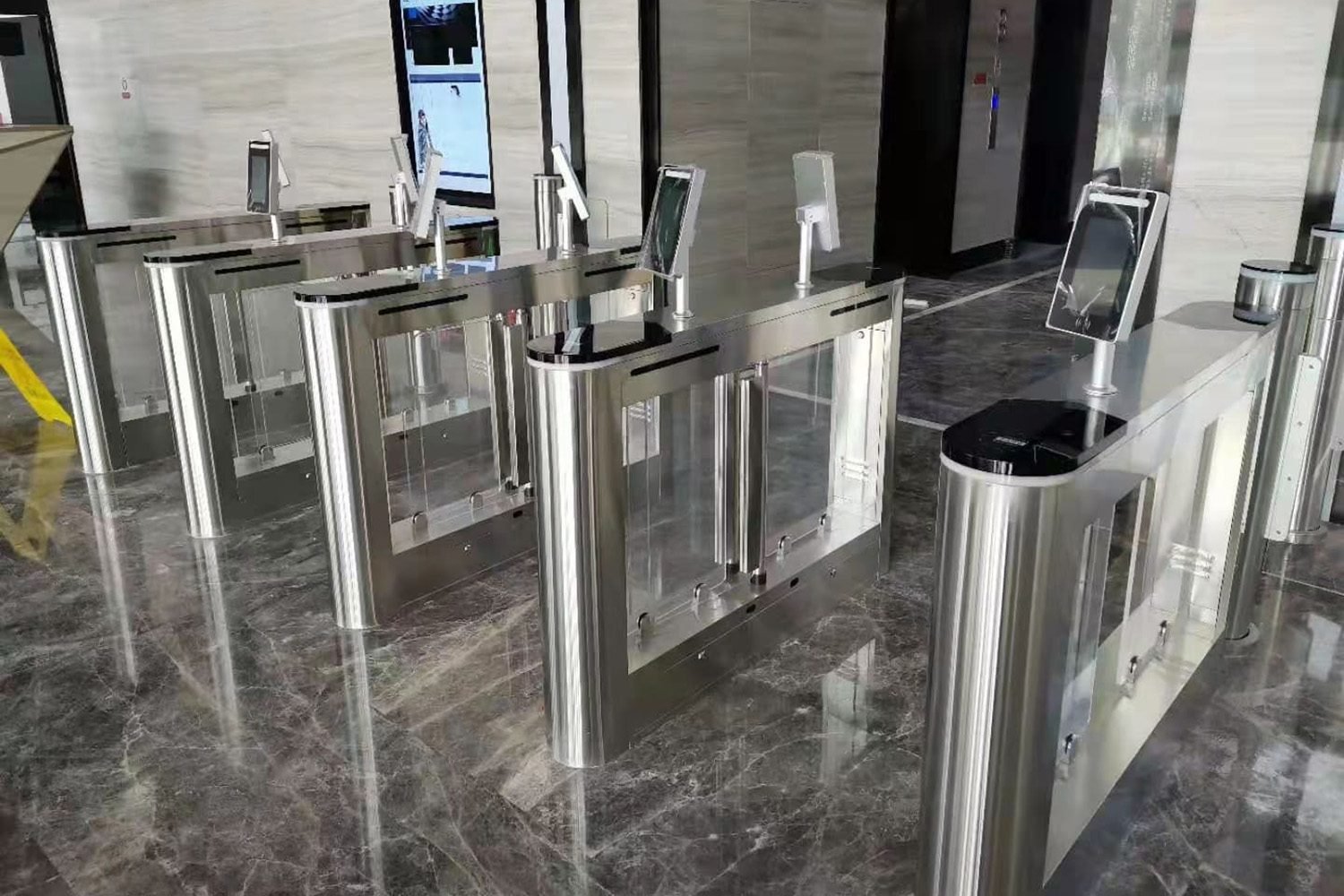

Swing Speed Gate

The MRM TECHNOLOGY is an aesthetically pleasing motorized turnstile that combines sleek design with advanced security features. It features a unique sliding flap operation principles crafted with premium housing materials and lightweight cabinet shapes, making it a universal solution for a wide range of facilities that demand equipment of elegant standards. Besides smoothly integrating into upscale surroundings, MRM TECHNOLOGY also maintains precise access control. As a freeway series product, it has an anti-tailgating program that ensures no unauthorized entries occur in highly secured places.

The beautifully designed sliding flaps, made durable glass or polycarbonate, contribute to the building’s modern design. They offer users the option of push-button operation or ACS integration to facilitate foot traffic control in large corporate offices, posh shops, and high-class hotel rooms.

Combining cutting-edge technology and sleek design, these security turnstile offer unpatrolled performance, reliability, and aesthetics, making them ideal for a wide range of applications. With three cabinet designs-sculpt, Edge, and contour-you can chose from different sizes, materials, and finishes to create a security solution that is one of a kind.

Each model of these security turnstiles features a unique design that can be customized to match the interior of any building. Whether you’re looking for a sleek, modern look or a more traditional aesthetic, the signature speed lane series has something to offer.

The swing barrier provides a reliable and effective method to ensure that only authorized users ae allowed to access every area of the building. It meets the fire emergency requirements, all channels are opened for power failure, and there is an independent fire alarm interface. The compact unit makes it easy to construct a multi-channel setup, while the multiple colors allow you to perfectly match this turnstile to your hail or brand

Features and Function of swing Barrier:

1. 304 stainless steel, Apperance design, generous, beautiful, humanized design. Appearance can be customized;

2. High-performance integrated control panel, strong anti-interference ability, stability system, Drive module does not       heat heat, Low power consumption;

3. Scour protection function; when the open signal is not received, arm will be locked after 5 degrees rotation;

4. Automatic reset function: After turnstile opened, not pass within a specified period of time,

5. Read the card with memory and without memory function: users can be set using the keyboard according to their needs;

6. Audible alarm function: Including unlawful entry, trailing and anti pinch;

7. 6—10 pairs of infrared sensors to detect the trailing and anti pinch;

8. Unique design, perfect control technology, beautiful and destinguised design, making products frequently favored by domestic and foreign high-end users.

Product Technical Parameters

Basic Function

    1. The entry and exit direction can be set independently, free mode/forbidden model

     2. Automatic reset function: The speed gate will open the arm after receiving the valid opening signal when standby. The speed gate will return to the hindered zero position automatically under the following situation:

     –within the allowed time, pedestrians have ben detected to pass through the passageway in specified direction;

     –over the allowed time, there is no people passing through the passageway.

      3. self-recovery function: The speed gates do not return to the hindered zero position because of human intervention. After revoking human intervention, the gat automatically return to the hindered zero position.

        4. Direction indicator: The direction indicator is installed on the top of the housing cabinet to indicate the valid passing direction

       5. Compatibility: Equipped with dry contact signal input interface can make sure compatible with all kinds of access controllers

Customized Function:

1. Built-in or external counter
2. External gate open button or remote controller
3. 316 grade stainless steel. Thickness of the material
4. Lane width can be made based on the requirement
5. Arm material organic glass, tempered glass, acrylic
6. Integrate with access control system and built-in reader appointed by customers

  1. Compact design, Efficient and secure access control system with reasonable price.

  2. Auto reset function, If no passing during identified card-reading time, the system will reset automatically, passengers are prohibited to pass until card is swiped.

  3. Both RFID card reader and QR code scanner could be integrated for better user experience.

  4. with direction indicator, it can guide passenger the correct entry and exit direction.

  5. Automatically locking to prevent passenger passing without the identified device.

  6. It adopts DC Brushes motor to drive stably and has low failure rate.

  7. Bi-directional passing or single way passing.

  8. Infrared photocells for safety access.

  9. Both acrylic and glass material door panel are available of arm material

Flap Barrier Turnstile

Flap barrier: Imagine a doorway that uses fins instead of a swinging door. That’s kind of like a flap barrier, but instead of swinging open, the fins rinse up to let one person pas through at a time. You see them a lot at places like train stations or office buildings. They help control the flow of people and make sure only authorized people enter. They often work with a security card or even facial recognition so only people with permission can get the fin to rise up and let them pass.

Flap barrier is designed to provide access control and complete security in the public passages. It demotes the way out of the security to the employees of an organization and also to the assets of a business. At the same time, it gives a high level of access to the open public and to the visitors. This has a big benefit for the people whose entire revenue depends on a constant pedestrian flow while safeguarding and securing its assets and personnel at a time.

Flap Barrier is the automatic gates you will find on the stations, office entrances, airports, and also in many other places. It is a device for emergency control. This allows an automatic opening of its two wings while people connect with it with the access cards and closedown in a minute after that.

Flap barriers are a type of turnstile that are commonly used to control access to a building or area. They are designed to allow one person to pas through at a time, and are often used in conjunction with other security measures such as security cameras or card readers.

One of the main benefits of flap barriers is that they provide a high level of security  while still allowing for a steady flow of people. They are also relatively low-maintenance, as they do not have moving parts that are prone to wear and tear.

Another advantage of flap barriers is that they can be integrated with other security systems. For example, they can be connected to a card reader or biometric scanner, so that only authorized individuals are able to pass through. This can be especially useful in high-security areas such as airports or government buildings.

Flap barriers are also available in a variety of styles, from basic models to more advanced ones that include features such as automatic closing and locking. Additionally, many flap barriers can be customized to match the aesthetic of the building in which they are installed.

In terms of installation, flap barriers are relatively easy to install. They can be placed either in a recessed or surface-mounted position, and they can be powered by either AC or DC power.

while flap barriers use a useful tool for controlling access to a building or area, they are not without their limitations. For example, they can be difficult for people with mobility issues to use, and may not be suitable for areas with high traffic.

In conclusion, flap barriers are a reliable and secure solution for controlling access to a building or area. They are low-maintenance, easily interactable with other security systems, customizable and easy to install. However, one should consider the traffic and  the physical capability of the visitors before installing flap barriers.

Product features:

With fault self-checking and alarm prompt function, it is convenient for users to maintain and use.

The running status of the device can be programmed through the built-in small button on the main control board;

Mechanical structure, induction dual anti-pinch function, when the telescopic arm encounters resistance during the reset process. it will automatically stop or the motor will stop working within the default time, and reset again after the default delay (until the reset, and the force is very small(<2kg);

sound and light alarm function: including illegal intrusion and trailing alarm;

Anti-shock function, the telescopic arm will be automatically  locked when it does not receive the opening signal;

The telescopic arm synchronization function;

with automatic reset function. the system will automatically cancel the user’s permission for this pass after the gate is opened and the system does not pass within the specified time. The standard is automatic reset 5 seconds after opening;

The channel is automatically opened after power off. and automatically closed after power on?

It can be connected to a variety of card readers, and can receive relay switch signals to work;

one-way or two-way control of personnel entry and exit:

It can realize remote control and management directly through the management directly through the management computer;

Extensible function: counting function: lengthened case. material selection of telescopic arm.

Full Height Turnstile Gate

Combining cutting-edge technology and sleek design, these security turnstiles offer unpatrolled performance, reliability, and aesthetics, making them ideal for a wide range of applications. With three cabinet designs-sculpt, edge and contour-you can choose from different sizes, materials, and finishes to create a security solution that is one of a kind.

Each model of these security turnstiles features a unique design that can be customized to match the interiors of any building. Whether you’re looking for a sleek, modern look or a more traditional aesthetic, the signature speed lane series has something to offer.

Full height turnstiles are ideal for security and crowd management at the entrance-mainly to the important areas that need high security nd management to pedestrian flow.

If you are looking for the latest models of full height turnstiles, you have come at the right place- MRM TECHNOLOGY– a one-step certified company involved in designing and delivery of movement control devices.

We design such turnstiles for pedestrian entrance control at high security areas.

We offer an exclusive range with complete user guide. Choose the right type of gates and get them delivered with installation support.

Full height turnstiles are a turnstile that will be from floor-to-ceiling with manual rotating barriers. The turnstile operates similarly to a revolving door allows access to one person at a time by locking after a single person gets access into the system. These full height turnstiles are designed yo provide complete security for the premises because an unauthorized person can’t enter or crawl under or climb over them.

Full height turnstile arms will be locked automatically when no pen signal i received. Such movement control systems allow access to at least one person at a time by different names, sort of a turnstile automated gate and baffle gate.

A full height turnstile used in high-security access control is necessary. These turnstile are required in prison’s, banks, data centers, industries, factories, power plants, and refineries.

Our Advantages:

1. 13 years of access control system solution service supplier.
2. Enterprise with patended technology for the whole industry of access turnstile gates.
3. Enterprise with the patents for a full range of the same style of access turnstile gate.
4. Possess technology enterprise certificate, ISO quality system management certification.
5. The product with CE, SGS certification, and the department of public safety test report.
6. Support secondary development and customization of hardware and software such as access turnstile gates, access control, face recognition, etc.
7. Appearance design patent, movement utility new model patent, gate control board patent.
8. Software patents of smart scenic spot ticket sales system, smart building cloud visitor system, smart community system,All-in-one card management system, etc

Feature and function;

1. 1. Fault detection, user-friendly maintenance and use
   2. Small button int the main control panel, can be set state of equipment.
   3. Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a predetermined time, click stop working automatically, the default reset again after a delay, and the intensity is very small(2kg)
   4. Scour protection function, when the gate signal is not received, the stick is automatically locked
   5. The door synchronization are adjustable(for doubleoff gates situation)
   6. With automatic reset function, gate, not prevailing within the stipulated time, the system will automatically cancel the access permission of the user.
   7. Normally open or closed can be freely adjusted to meet different venue requirements
   8. Mount can be used with a variety of reading devices, work when it receive relay switch signal
   9. Single, bi-directional swing function, one-way or two-way control personnel access
   10. Directly through the remote management computer control and management
   11. Power failure emergency function after power channel automatically open, closed automatically after power-on, to meet the special needs of the user and the fire safety requirements
   12. Sound (light) alarm function, containing illegal intrusion alarm (reverse broke into the gate);etc.
   13. counting function(optional)
   14. Anti-pinch function(four pairs of infrared)
   15. The precise logical judgement, infrared reset function(4or6 pairs of infrared)
   16. The voice output, humane tips for correct password(optional)).

Sliding Gate Turnstile

Intelligent sliding door through years of careful development, research and production of intelligent channel management equipment, mainly for personnel access to the intelligent management of high-tech products. The equipment organically integrated mechanical, electronic, microprocessor control, and a variety of identity recognition technology. Optional various identification system devices and reliable security protection devices, alarm device, direction, and extended a friendly LED count display interface, to coordinate channel intelligent control and management. Intelligent swing gate is easily compatible IC cards, ID cards, bar code cards, fingerprint reader. To realize access personnel civilized and orderly passage way, the effective management of personnel access. Can be widely used in stations, docks, subways, factories, buildings, intelligent community, hotels, clubs

Sliding turnstile is a kind of pedestrian access control turnstile gate based on the parallel linear movement of two baffles in the same or different directions to open and close the door. The sliding turnstile is an electric controlled automated turnstiles gate, which can be opened and closed manually through buttons, cad swiping, and remote control, or fully automatic through face recognition and human body induction. At present, it is commonly used at the entrance gates of various residential areas, enterprises, factories, and other places. which is specially used to control pedestrian access.

The sliding turnstile is composed of a chassis and two movable door wings, which can be extended and retracted to dissuade or release. This new design full height sliding turnstile MT237-p adopts the latest design and beautiful shape. The application selection of the sliding gate turnstile is determined according to the size and area of the site. Its door wing is higher than the swing turnstile gate and flap barrier turnstile. It is generally designed to be 1.6m high. The channel width is the same as that of the swing turnstile gate channel. The width of 0.55M is enough to achieve the purpose of  one person’s passage.

For some government agencies and units or places with strong confidentiality and high-security requirements, the sliding turnstile can be selected as the main access control management equipment, which has more strict access management and stronger security measures. The security measures are mainly reflected in its design. The sliding arm is relatively high to prevent drilling and climbing, and the main material is acrylic glass. The vision of this channel will not be limited. It is placed in the hall of the office building, and the wholes still transparent and bright.

The sliding barrier turnstile is different from the tripod turnstile gate, swing turnstile gate, and a flap barrier gate. It is a kind of pedestrian turnstile gate equipment that is not commonly used and needs to be strictly prevented from entering and leaving. Because the blocking barrier on both sides is translation type and adopts automatic control, it will not easily clip people. The design of a high-blocking barrier prevents the possibility of unauthorized crossing and climbing, so high security is its most important sign. The blocking barrier is thin and can be made into the form of two doors, which is more reinforced for security and safe and flexible.

It is mostly used in scenes where security efficiently needs to be improved, such as high-end office buildings, group enterprises, halls or elevator halls of business buildings, staircases, etc.

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings; as well as installation drawings.

Features of barrier:

1. waterproof tripod turnstile/flap barrier/full height turnstile, sliding turnstile:
2. 304 stainless steel (standard),316 stainless steel optional;
3. RFID/RFID card reader, barcode reader, fingerprint machine, face recognition machine, exit button optional
4. communication interface: RS485, TCP/IP(Standard)
5. standard access control system with software in English is free

The function of our access controller can work with the sliding turnstile:

1. can show the records on the TV screen
2. show the access records
3. personnel location function
4. can set the access time(extension function)
5. Time Attendance
6. Monitor function

precautions for use:

In the process of using the sliding barrier turnstile, the passing personnel shall abide by the passing principle of “swiping card outside the yellow line or senseless identification, no trailing and reverse passing”.

Note: pedestrians swipe their cards outside the yellow line on the outside of the passage. only the person can pass through a valid card at a time. It is forbidden for pedestrian behind to follow and  opposite to pass in the opposite direction without swiping their cards”.

Pay attention to daily cleaning and maintenance during the use of the sliding barrier turnstile. Regular inspection can effectively prevent the aging of turnstile, the appearance and function can be customized according to the demand.

We can provide OEM and ODM services. we also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanner’s, face recognition cameras, and so on. If you need to integrate these devices on the turnstile gate or have any questions, please contact us

The first video is an ordinary sliding turnstile, which is ultra-silent and look’s beautiful. The following video is a customized sliding turnstile. No matter the size or appearance of the sliding turnstile, it is customized according to the actual needs of customers. If you need to customize a similar sliding turnstile, you can also contact us

SLIDING GATE TURNSTILE features an elegant design, high speed, high security, small noise operation, smooth running, and a long life span. It’s highly integrated to be compatible with face recognition temperature scanners, fingerprint access control, QR systems, ESD access control RFID, etc. Being the speed flap barrier, the swing baffle opens automatically when power is off, free for passing for fire/emergency exit requirements.

SLIDING TURNSTILE is constructed to control people entering or existing the restricted area. It is usually used in high pedestrian traffic low locations in both directions.

The sliding barrier turnstile gate casing is made of brushed 304 stainless steel which creates a seamless and nice entrance system to blend into most indoor environments.

It can be integrated with all third-party access control systems(e.g.: RFID access system, push the button, fingerprint and face recognition with temperature check)

In case of emergency, the sliding Turnstile arm will open automatically connecting with the battery or capacitor to allow free passage.

The optical sliding turnstile is suitable for luxury and elegant solutions.

The sliding gate turnstile features fast speed, long life, high performance, and high operation dependability.

Alarm function, in case of illegal intrusion and reverse intrusion.

The infrared sensor will alarm and the LED light will flash to prevent pinching pedestrians.

Automatic reset function: sliding arms will close automatically within 5s in default(can be set)if a passenger delays to

The sliding gate turnstile will stay in the lock if someone wants to burst in without swiping the RFID card.

An LED directional indicator on the top and front post

casing Material: 304 stainless steel

Anti-reverse function, the turnstile alarms if someone wants to enter in the reverse direction.

Bi-direction or single-direction running are options

we can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. please refer to the below for details.

Optional Access Control Solutions:

The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.

Occasion Application:

suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University,  institutions, clubs, and other high-end places related to entrance access control solutions.

FAQ

Can this swing barrier gate wiyh anti-tailaing alarm?

yes, Anti-alarm is our standard request.

What is the using lif of this speed gate?

More than 5,000,000 times.

Can I using our own access system to control the swing barrier gate?

Yes, the swing turnstile gate can receive the signal from your access control system and running.

Can you offeraccess control system?

Yes, we have our access control system like rfid cards, QR codes, Barcode. Ticket selling systems, face recognition. ect.

Can you make my own brand?

Yes, we have 12 ODM Experience since 2009. we can make our private design and logo.

What is the warranty policy?

During 12 months warranty period. any parts running wrong or problems, we will send the free to replace.
