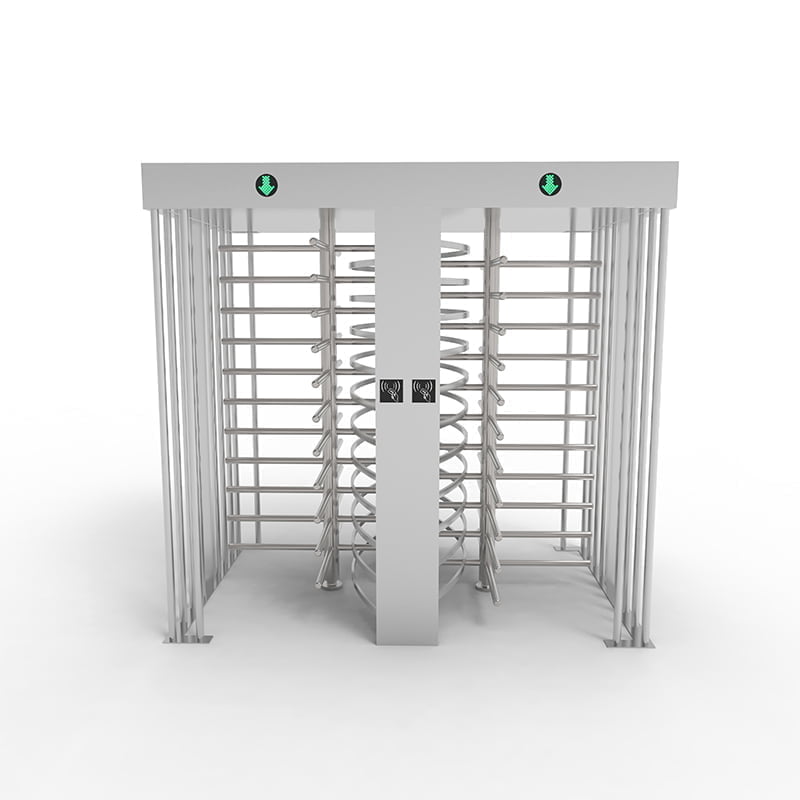

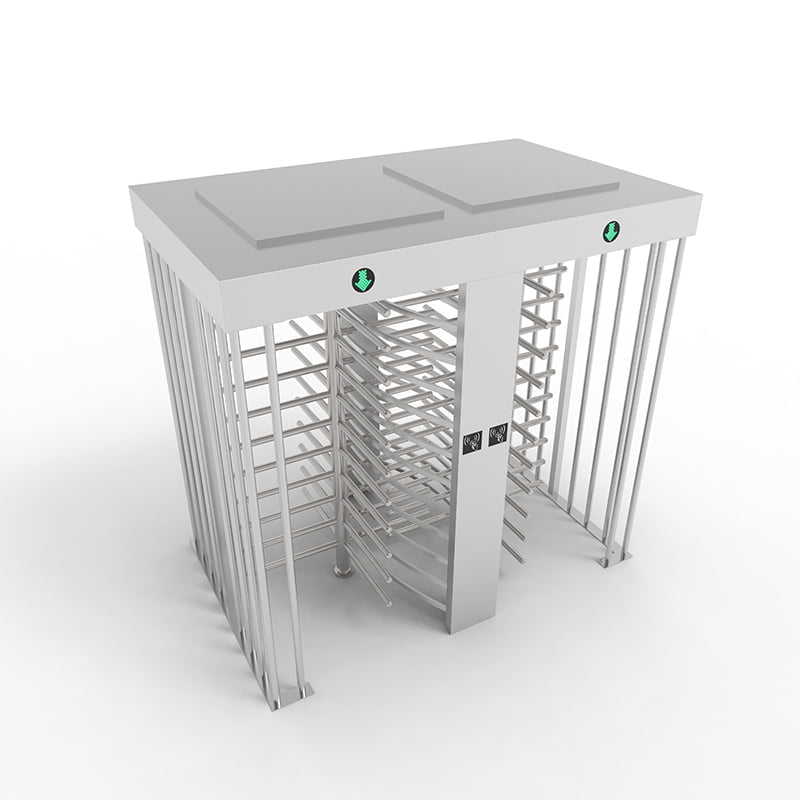

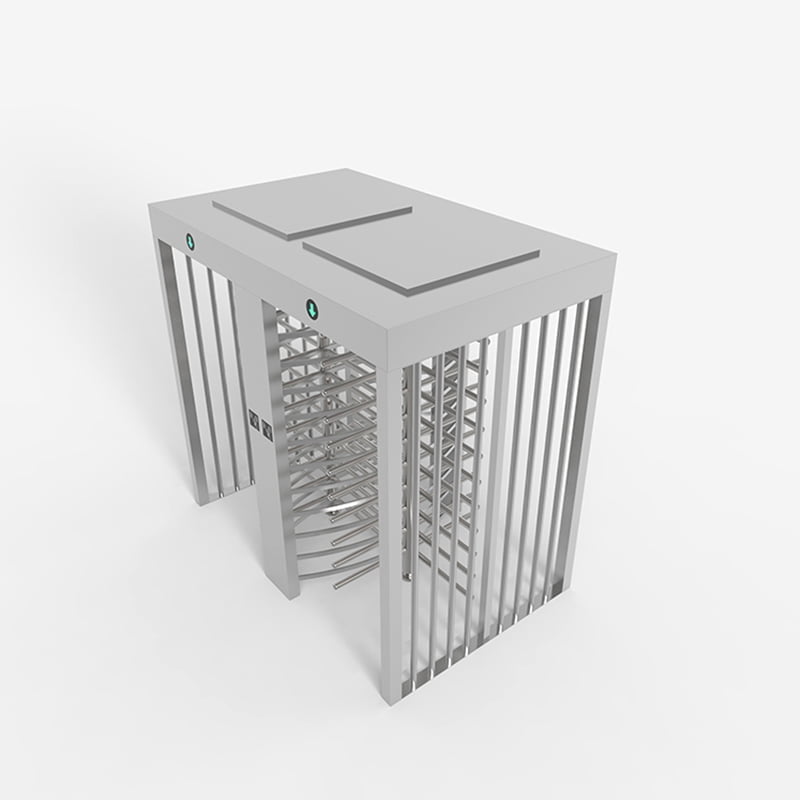

Double Passage Face Recognition Entrance 304 SS Full Height Turnstile Gates
We design such turnstiles for pedestrian entrance control at full high security areas.
We offer an exclusive range with complete user guide. Choose the right type of gates and get them delivered with installation support.
Product Technical Parameters
| Model Number | MR FHT728 |
| size | 2400*1350*2260mm |
| Material | SUS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | 220V, 50H; (support adjustable) |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single movement: 50KG, Double Passage movement: 70KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC brushless motor: 24v/40w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage. 2.Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3.The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
| Advantages |
|
| Secondary development | 1. turnstile gate brushless motor tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment; 2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
| patent | patented design products patented movement utility model products |
| Special Functions | 1. power failure open gate or power failure close gate is optional, default power failure open gate 6. Legal passage electronic booster pusher, illegal passage lock clutch. 2. support memory mode, automatic reset, free to set the passage time, support the passage of the completion of the feedback, equipment can be set remotedly more than 10 kinds of flexible configuration of the gate mode; 3. Equipment to support remote control of the pedestrian passage time settings, and real-time feedback settings; 4. Equipment to support the passage of the completion of the feedback, fault active feedback function for the gate failure, can actively upload the fault code, to achieve early warning, easy maintenance; 5. Realize early warning, convenient maintenance; 6. Through the management computer to achieve remote control door single pass open door, multi-pass open door, normally open, normally closed, fire control, return to normal, etc. |
| Secondary development |
|
Customized Function:
- Built-in or external counter
- External gate open button or remote controller
- 316 grade stainless steel. Thickness of the material
- Lane width can be made based on the requirement
- Arm material organic glass, tempered glass, acrylic
- Integrate with access control system and built-in reader appointed by customers
Height Turnstile Price
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Our Advantages:
- 13 years of access control system solution service supplier.
- Enterprise with patended technology for the whole industry of access turnstile gates.
- Enterprise with the patents for a full range of the same style of access turnstile gate.
- Possess technology enterprise certificate, ISO quality system management certification.
- The product with CE, SGS certification, and the department of public safety test report.
- Support secondary development and customization of hardware and software such as access turnstile gates, access control, face recognition, etc.
- Appearance design patent, movement utility new model patent, gate control board patent.
- Software patents of smart scenic spot ticket sales system, smart building cloud visitor system, smart community system,All-in-one card management system, etc.
