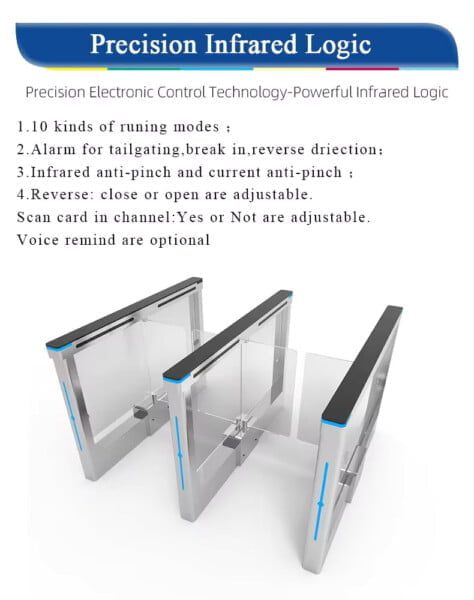

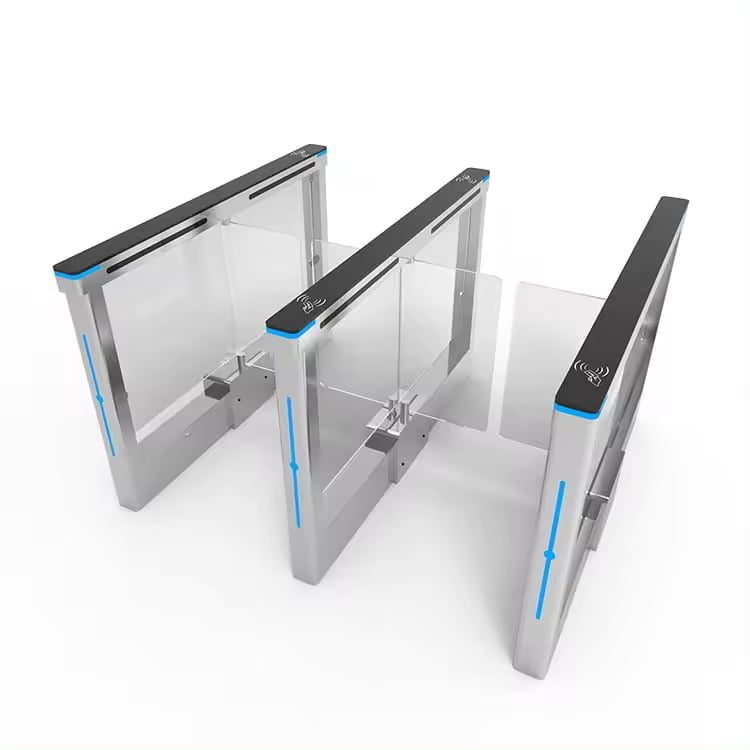

Exhibition Halls Entrance Access Control Turnstile Auto Swing Gate
Turnstile Auto Swing gates offer dissuasive automated access control for sites with heavy use. Well-built for increased durability, they efficiently control high throughput. Since they can be installed inside or outside buildings, they provide control of occasional user abuse. This is simple, economical and compact equipment.
1. Only authorized persons can enter through the turnstile. The Three Arm Rod Runing to achieve the purpose such as anti-tailing.
2. Using the multiple anti-clamping designs to protect the personal safety of passengers in maximum limit.
3. The widen lane is optional for carrying luggage and wheelchair access.
4. Equipped with the dry contact signal input interface, compatible with all kinds of access controllers.
5. It with LED display screen and speaker to display the user information (which can be customized)
6. after scaning card in normal condition, if within the permitting time passengers do not pass, the system will cancel the ” pass right and arm close automatically.
7. Arm automatically open when the power off to make sure safety In case of emergency.
8. optional for external counter to record the people numbers for each lane.
Product Technical Parameters
| Model Number | MR SPT260S |
| size | 1500*140*1000mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | 220V, 50H; (support adjustable) |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single core movement: 50KG / double core movement: 70KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage. 2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
| Advantages |
|
| Secondary development | 1. tripod turnstile gates, swing gates Auto Swing Gate Price, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment; 2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
| patent | patented design products patented movement utility model products |
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
