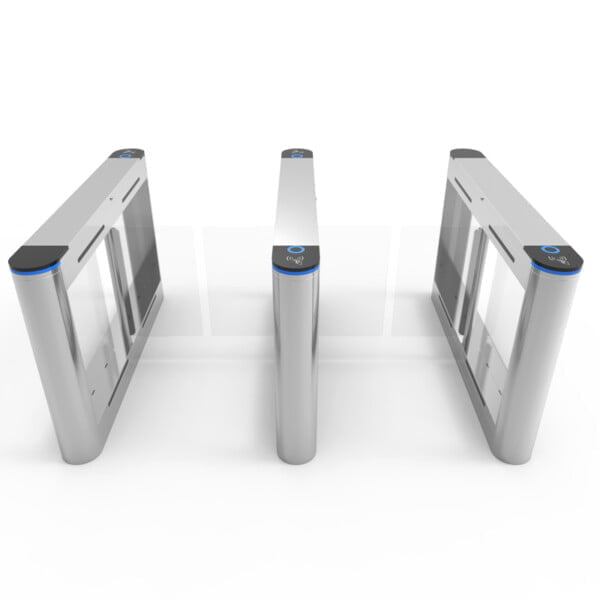

Security Gate New Fast Lane Pedestrian School Speed Gate
The Speed Gate barrier provides a reliable and effective method to ensure that only authorized users ae allowed to access every area of the building. It meets the fire emergency requirements, all channels are opened for power failure, and there is an independent fire alarm interface. The compact unit makes it easy to construct a multi-channel setup, while the multiple colors allow you to perfectly match this turnstile to your hail or brand
Product Technical Parameters
| Model Number | MR SPT136SA |
| size | 1400*120*1000mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | 220V, 50H; (support adjustable) |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single core movement: 50KG / double core movement: 70KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage. 2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
| Advantages |
|
| Secondary development | 1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment; 2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
| patent | patented design products patented movement utility model products |
1. Compact design, Efficient and secure access control system with reasonable price.
2. Auto reset function, If no passing during identified card-reading time, the system will reset automatically, passengers are prohibited to pass until card is swiped.
3. Both RFID card reader and QR code scanner could be integrated for better user experience.
4. with direction indicator, it can guide passenger the correct entry and exit direction.
5. Automatically locking to prevent passenger passing without the identified device.
6. It adopts DC Brushes motor to drive stably and has low failure rate.
7. Bi-directional passing or single way passing.
8. Infrared photocells for safety access.
9. Both acrylic and glass material door panel are available of arm material
Optional Access Control Solutions:

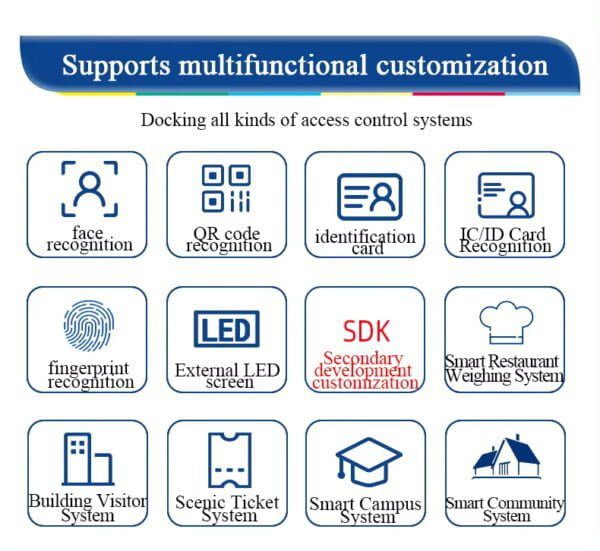

The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
