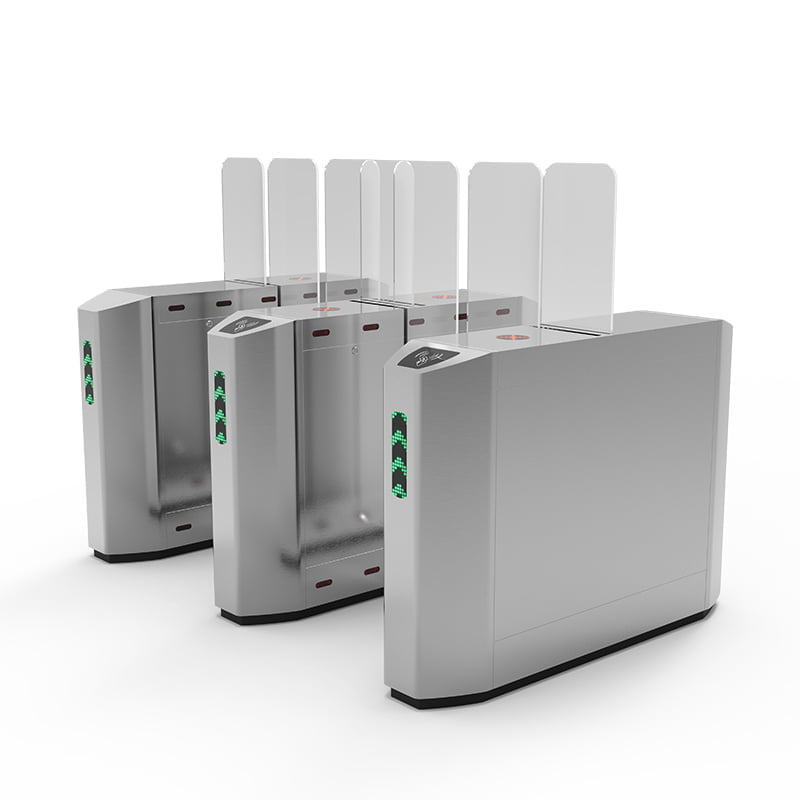

Entrance Acrylic LED Indicator Light Sliding Barrier Standard Industrial

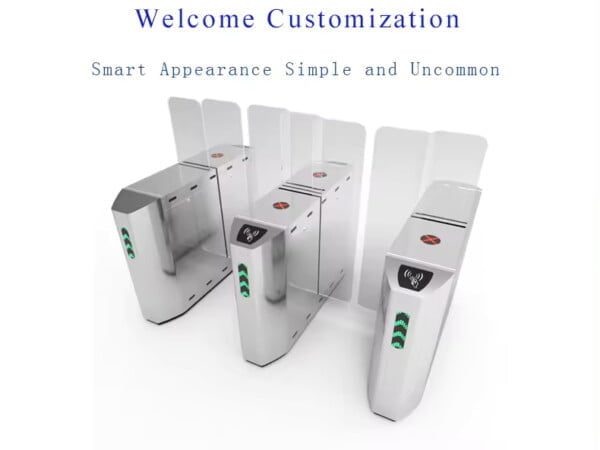

The first video is an ordinary sliding turnstile, which is ultra-silent and look’s beautiful. The following video is a customized sliding turnstile. No matter the size or appearance of the sliding turnstile, it is customized according to the actual needs of customers. If you need to customize a similar sliding turnstile, you can also contact us
SLIDING GATE TURNSTILE features an elegant design, high speed, high security, small noise operation, smooth running, and a long life span. It’s highly integrated to be compatible with face recognition temperature scanners, fingerprint access control, QR systems, ESD access control RFID, etc. Being the speed flap barrier, the swing baffle opens automatically when power is off, free for passing for fire/emergency exit requirements.
Product Technical Parameters
| Model Number | MR P231 |
| Product name | Entrance Acrylic LED Indicator Light Sliding Barrier Standard Industrial |
| Application | Security Access Control Management |
| size | 1400*350*1000mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | AC 220V/110V 10% 50/60MHZ(optional) 220V, 50H; (support adjustable) |
| Type | full automatic or semi automatic |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |

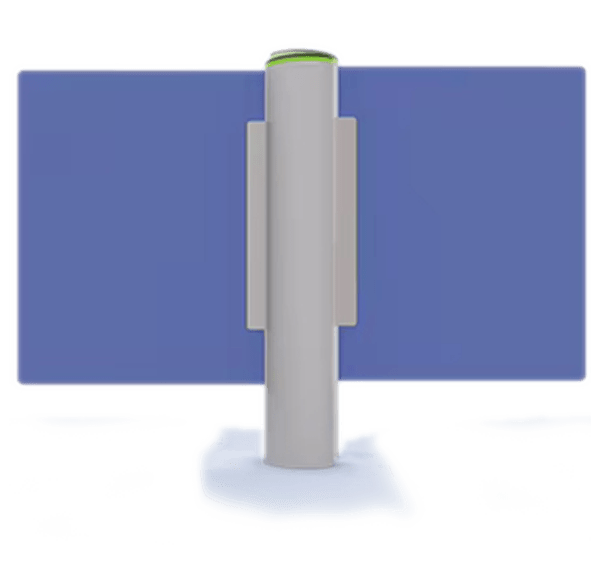

| weight | single core movement: 70KG / double core movement: 80KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage. 2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
| Advantages |
|
| Secondary development | 1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment; 2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
| patent | patented design products patented movement utility model products |
Mechanical Parameters:
| 1. Iron Material ; 304 Stainless steel |
| 2. Material thickness: 1.5-2.0mm thickness. |
| 3. painting finished surface; |
| 4.Infrared anti-pinch protection; |
| 5.Illega; traffic alarm, trailing alarm; |
| 6.Swipe the card to open the gate and alarm for reverse pass direction; |
| 8.6 pair of infrared sensor; |
| 9.Mechanical anti-pinch, infrared anti-inch and brushless current anti-pinch; |
| 10.The motherboard comes with a test button, which is convenient for testing and maintenance |
| 11.Buit-in sheet metal paint electric control box to effectively protect the motherboard |
| 12.Independent invention patented gate main board |
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
