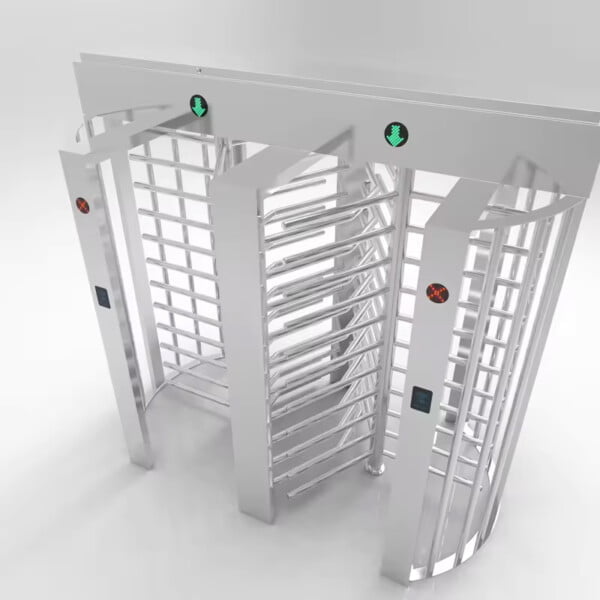

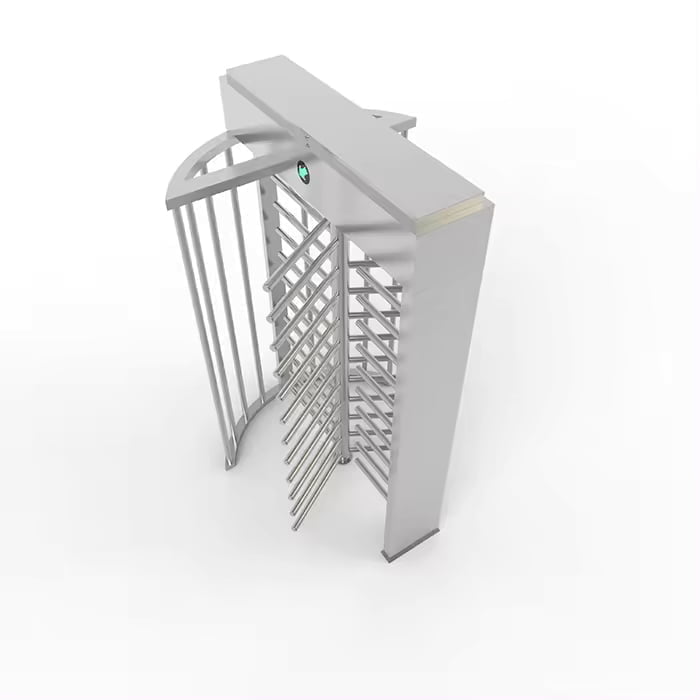

Single Full Height Turnstile Security QR Code Scanner Rfid System
Single Full Height Turnstile is a kind of pedestrian access control turnstile gate based on the parallel linear movement of two baffles in the same or different directions to open and close the door. The sliding turnstile is an electric controlled automated Single Full Height Turnstile Security QR Code Scanner Rfid System, which can be opened and closed manually through buttons, cad swiping, and remote control, or fully automatic Full Height Turnstile Security through face recognition and human body induction. At present, it is commonly used at the entrance gate of various residential areas, enterprises, factories, and other places. which is specially used to control pedestrian access.
| Model Number | MR FHT705 |

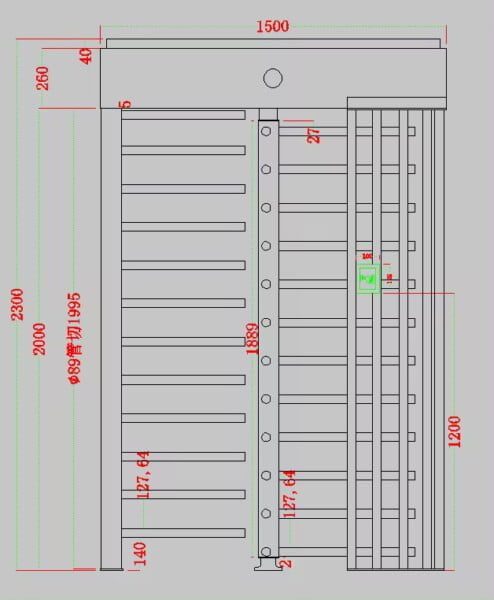

| size | 1500*1360*2260mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | 220V, 50H; (support adjustable) |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single movement: 50KG, double movement: 70KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC brushless motor: 24v/40w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage. 2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
| Advantages |
|
| Secondary development | 1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment; 2. can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
| patent | patented design products patented movement utility model products |
| Special Functions | 1. power failure open gate or power failure close gate is optional, default power failure open gate 6. Legal passage electronic booster pusher, illegal passage lock clutch. 2. support memory mode, automatic reset, free to set the passage time, support the passage of the completion of the feedback, equipment can be set remotedly more than 10 kinds of flexible configuration of the gate mode; 3. Equipment to support remote control of the pedestrian passage time settings, and real-time feedback settings; 4. Equipment to support the passage of the completion of the feedback, fault active feedback function for the gate failure, can actively upload the fault code, to achieve early warning, easy maintenance; 5. Realize early warning, convenient maintenance; 6. Through the management computer to achieve remote control door single pass open door, multi-pass open door, normally open, normally closed, fire control, return to normal, etc. |
| Secondary development |
|
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Single Full Height Turnstile Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
