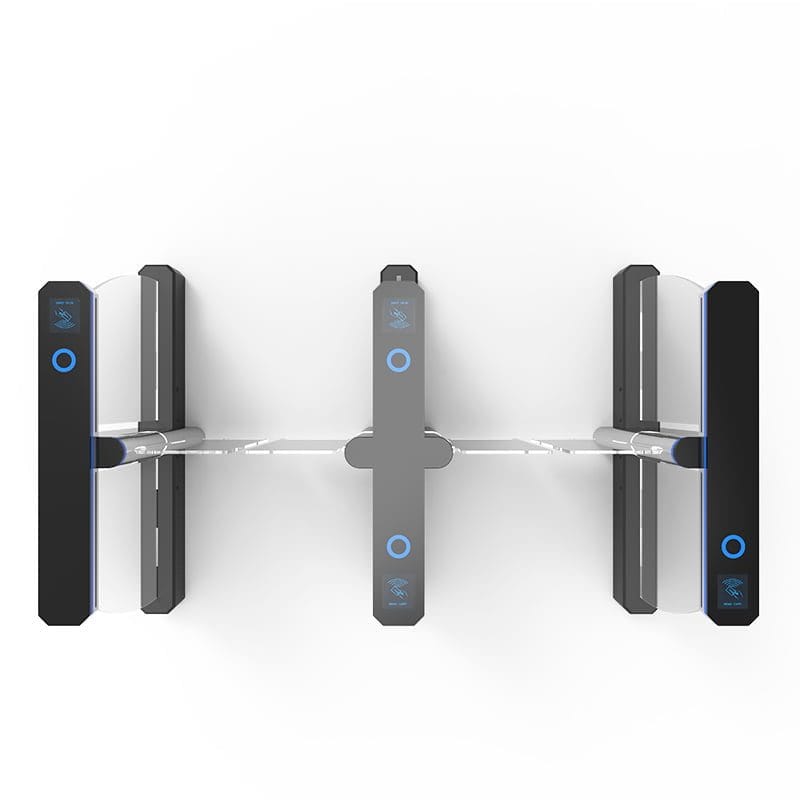

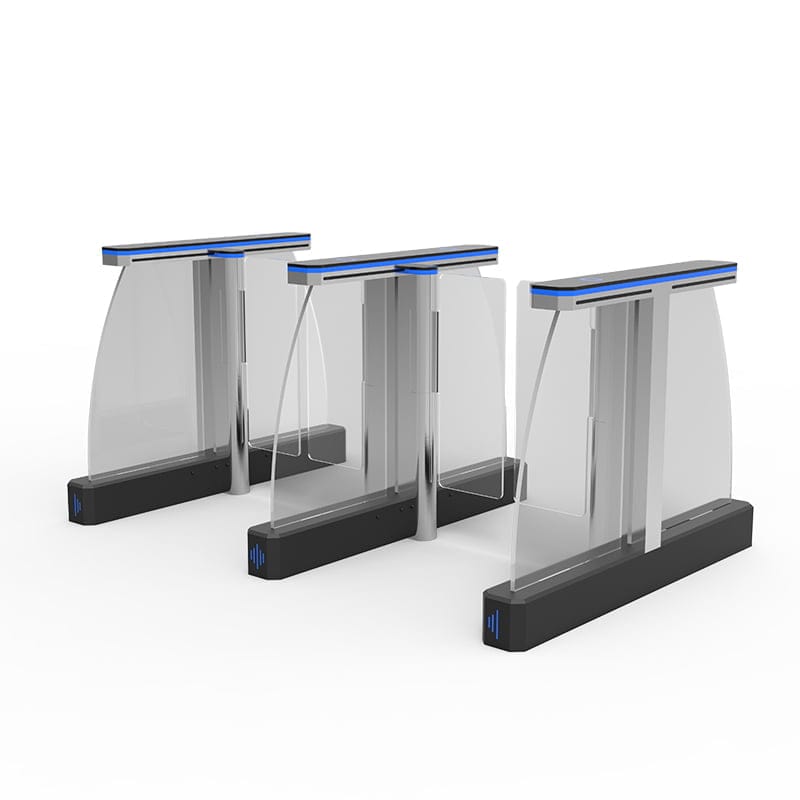

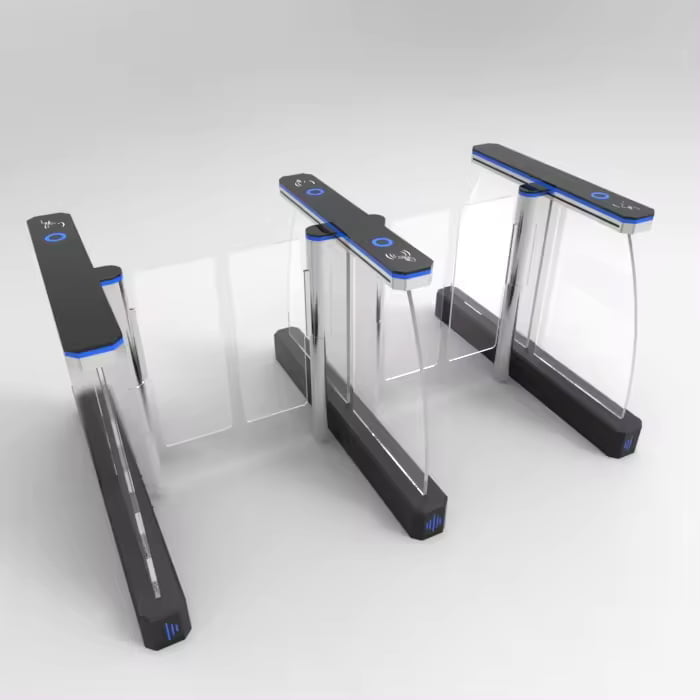

Servo Motor Speed Turnstile Gate 304 Stainless Steel
Combining cutting-edge technology and sleek design, these security turnstile offer unpatrolled performance, reliability, and aesthetics, making them ideal for a wide range of applications. With three cabinet designs-sculpt, Edge, and contour-you can chose from different sizes, materials, and finishes to create a security solution that is one of a kind.

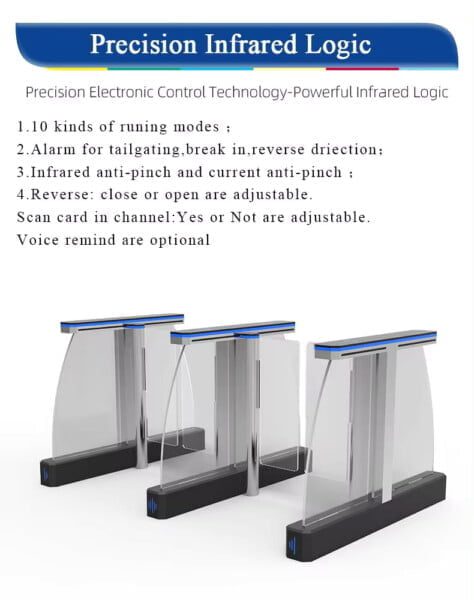

Features and Function :
1. 304 stainless steel, Apperance design, generous, beautiful, humanized design. Appearance can be customized;
. 2.High-performance integrated control panel, strong anti-interference ability, stability system, Drive module does not heat heat, Low power consumption;
3. Scour protection function; when the open signal is not received, arm will be locked after 5 degrees rotation;
4.Automatic reset function: After turnstile opened, not pass within a specified period of time,
5.Read the card with memory and without memory function: users can be set using the keyboard according to their needs;
6.Audible alarm function: Including unlawful entry, trailing and anti pinch;
7.6—10 pairs of infrared sensors to detect the trailing and anti pinch;
8.Unique design, perfect control technology, beautiful and destinguised design, making products frequently favored by domestic and foreign high-end users.
Product Technical Parameters
| Model Number | MR SPT239S |
| size | 1400*150*1000mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | 220V, 50H; (support adjustable) |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single core movement: 50KG / double core movement: 70KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage. 2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
| Advantages |
|
| Secondary development | 1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment; 2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
| patent | patented design products patented movement utility model products |
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
