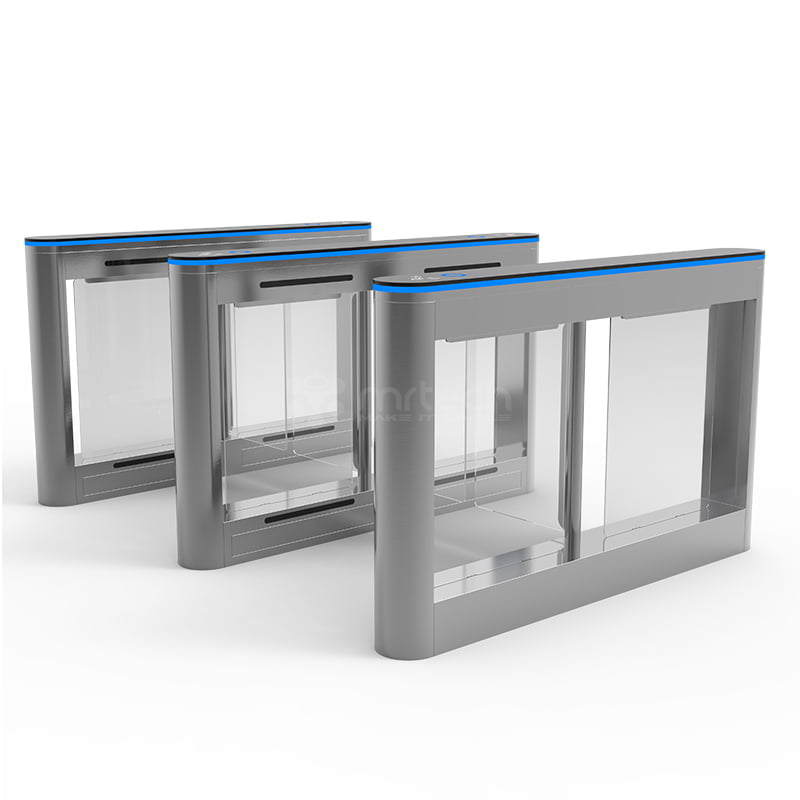

Security Turnstile Glass Arm Face Scan RFID Card QR Code Turnstile Swing Barrier Gate
The Security Turnstile Glass Arm is different from the tripod turnstile gate, swing turnstile gate, and a flap barrier gate. It is a kind of pedestrian turnstile gate equipment that is not commonly used and needs to be strictly prevented from entering and leaving. Because the blocking barrier on both sides is translation type and adopts automatic control, it will not easily clip people. The design of a high-blocking barrier prevents the possibility of unauthorized crossing and climbing, so high security is its most important sign. The blocking barrier is thin and can be made into the form of two doors, which is more reinforced for security and safe and flexible.
Our Advantages:
- 13 years of access control system solution service supplier.
- Enterprise with patended technology for the whole industry of access turnstile gates.
- Enterprise with the patents for a full range of the same style of access turnstile gate.
- Possess technology enterprise certificate, ISO quality system management certification.
- The product with CE, SGS certification, and the department of public safety test report.
- Support secondary development and customization of hardware and software such as access turnstile gates, access control, face recognition, etc.
- Appearance design patent, movement utility new model patent, gate control board patent.
- Software patents of smart scenic spot ticket sales system, smart building cloud visitor system, smart community system,All-in-one card management system, etc
Product Technical Parameters
| Model Number | MR B136F |
| Product name | Security Turnstile Glass Arm Face Scan RFID Card QR Code Turnstile Swing Barrier Gate |
| Application | Security Access Control Management |
| size | 1400*185*1000mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | AC 220V/110V 10% 50/60MHZ(optional) 220V, 50H; (support adjustable) |
| Type | full automatic or semi automatic |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single core movement: 70KG / double core movement: 80KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage. 2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
| Advantages |
|
| Secondary development | 1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment; 2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
| patent | patented design products patented movement utility model products |
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
FAQ
Can this swing barrier gate wiyh anti-tailaing alarm?
yes, Anti-alarm is our standard request.
What is the using lif of this QR Code Turnstile Gate?
More than 5,000,000 times.
Can I using our own access system to control the swing barrier gate?
Yes, the swing turnstile gate can receive the signal from your access control system and running.
Can you offeraccess Security Turnstile Glass Arm Face Scan control system?
Yes, we have our access control system like rfid cards, QR codes, Barcode. Ticket selling systems, face recognition. ect.
Can you make my own brand?
Yes, we have 12 ODM Experience since 2009. we can make our private design and logo.
What is the warranty policy?
During 12 months warranty period. any parts running wrong or problems, we will send the free to replace.
