Access Control Swing Barrier RFID Cards QR Code Optical Speed Gate Security Turnstile Gate

Access Control Swing Barrier RFID Cards QR Code Optical Speed Gate Security Turnstile Gate

Access Control Swing Barrier RFID Cards QR Code Optical Speed Gate Security Turnstile Gate Thermometer Recognition, Face recognition, Fingarprint, Password Recognition. and other attendance device solutions for exhibition halls

Quantity	Price	Discount
1-20	₹108,500.00 PIECE	0%
21-50	₹103,075.00 PIECE	5%
51-100	₹97,650.00 PIECE	10%
101+	₹94,395.00 PIECE	13%

7 Items sold in last 2 minutes

₹108,500.00 – ₹175,999.00PIECE

Open Core	Double Single
Motor Type	Brushless Clear

Add ₹35,000.00 and we will send you the order for free shipping!

Ordered:1

Items available:4

Fast Shipping

20k products

24/7 Support

Delivery

9446 People watching this product now!

Description

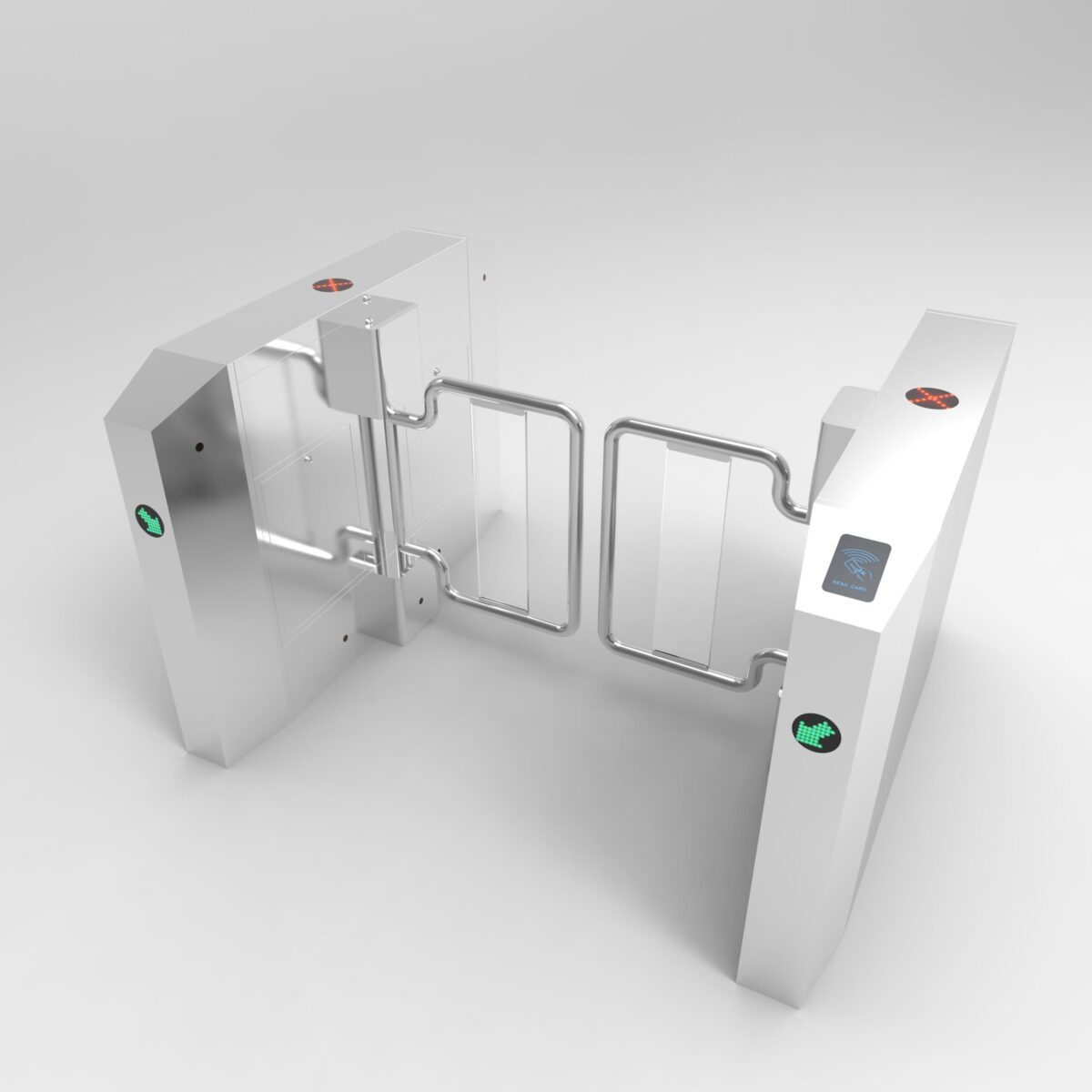

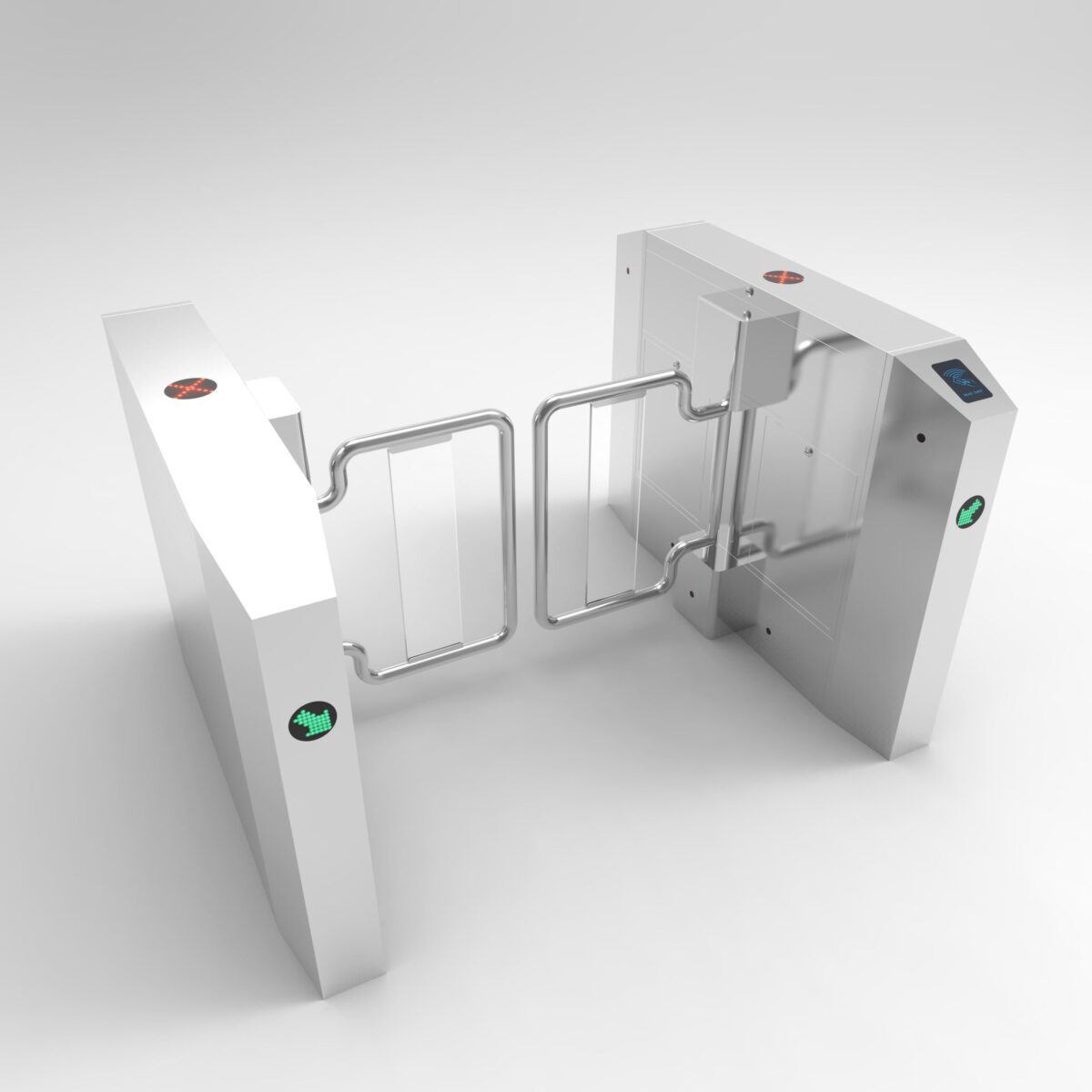

Access Control Swing Barrier RFID Cards QR Code Optical Speed Gate Security Turnstile Gate

If you are looking for the latest models of Swing Barrier turnstiles, you have come at the right place- MRM TECHNOLOGY– a one-step certified company involved in designing and delivery of movement control devices.

We Access Control Swing Barrier design such turnstiles for pedestrian entrance control at high security areas.

We offer an exclusive range with complete user guide. Choose the right type of gates and get them delivered with installation support.

Product Technical Parameters

Model Number	MR B240
Product name	Swing Barrier, Flap Barrier Turnstile, Full Height Turnstile Gate, Sliding Gate Turnstile,
Application	Security Access Control Management
size	14002701000mm
Material	SS304 grade stainless steel
Thickness of material	body cabinet 1.0mm, top of cover 1.2mm
Arm material	Acrylic/Glass 10mm thickness
Channel width	≤1000mm
open gate signal input	Dry contact signals, 232 or 485 commands.
Unlocking time	0.2s
Speed of passage	≤35p/Min
Voltage input	AC 220V/110V 10% 50/60MHZ(optional) 220V, 50H; (support adjustable)
Type	full automatic or semi automatic
environmental temperature	-25°C~+70°C
working environment	Indoor/outdoor (under shade)
MCBF	≥5 million
weight	single core movement: 70KG / double core movement: 80KG
configuaration	one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared
Driving Motor	DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w
Alarm	Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current:
Special Functions	1. support normally open, normally closed, power failure door opening, fire linkage. 2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback;
Advantages	The equipment has fault active feedback function, for gate failure, can actively upload fault code, realize the early warning, convenient maintenance Through the management computer to realize remote control door single pass open door, normally open, normally closed, fire control, return to normal and so on.

Secondary development

1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment;

2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ)

patent

patented design products patented movement utility model products

Optional Access Control Solutions:

The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.

Occasion Application:

suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
