Security Tripod Turnstile Gate Facial Recognition Control
Security Tripod Turnstile is designed to provide access control and complete security in the public passages. It demotes the way out of the security to the employees of an organization and also to the assets of a business. At the same time, it gives a high level of access to the open public and to the visitors. This has a big benefit for the people whose entire revenue depends on a constant pedestrian flow while safeguarding and securing its assets and personnel at a time.
Security Tripod Turnstile Functions:
- Designed reasonable and reliable movement, noise, smooth running, and long service life.
- Access prompt function: Red and green light prompt the passing information.
- The programmable gates control state, with a variety of operating modes you can chose, you can set a one-way or two-way control.
- Installation with personalized interfac, compactible with IC,ID cards and other smart cards.
- standard input and output interface
- Scour protecton function, when the gate signal is not received, the stick is automatically locked
- Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board
- Self-test failure alarm function, user-friendly maintenance and use.
- With the [power drop-shot function. In case of power off, the railing falls, and in case of power on, the railing automatically rise.
- Counting function: record the passing times, LED digital display function(optional)
- Security Tripod Turnstile Waterproof, sunscreen, cold and high temperature.
Product Technical Parameters
Model Number | MR TT311D |
Product name | Security Tripod Turnstile |
Application | Security Access Control Management |
Material | 304 stainless steel |
Power supply | AC 220V/110V 10% 50/60MHZ(optional) |
Warranty | 1 year |
Keyboard | Security Tripod Turnstile steel |
Working environment | Temperature: -10~+60 |

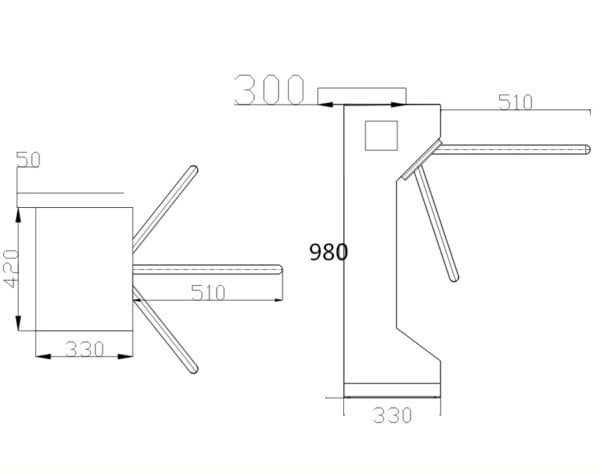

Size | 1000*280*1000mm |
Type | full automatic or semi automatic |
PASS SPEED | 30-40 Persons/min |
Drive voltage | DC24V |
Lane width | <_610mm |
Net weight | 50kg |
MCBF | >5.000.000times |
Access speed | 40 people/min |
Open Close speed | 0.2sec |
Rotating Directional | Single and Double adjustable |
Signal | Dry contract |
Working environment | Indoor outdoor |
Temperature | -25 C –70 C |
Relative humidity | <90% no condensation |

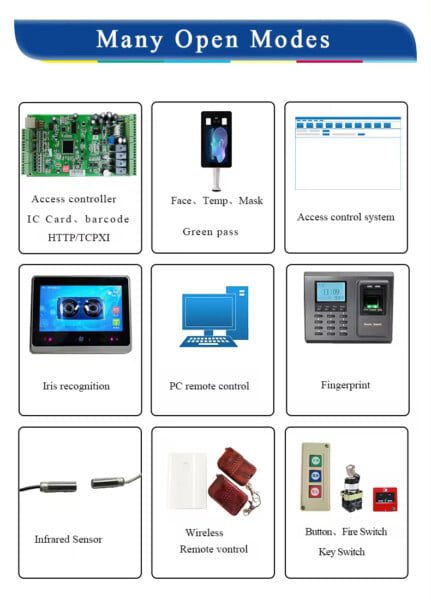

Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
FAQ
Can this swing barrier gate wiyh anti-tailaing alarm?
yes, Anti-alarm is our standard request.
What is the using lif of this speed gate?
More than 5,000,000 times.
Can I using our own access system to control the swing barrier gate?
Yes, the swing turnstile gate can receive the signal from your access control system and running.
Can you offeraccess control system?
Yes, we have our access control system like rfid cards, QR codes, Barcode. Ticket selling systems, face recognition. ect.
Can you make my own brand?
Yes, we have 12 ODM Experience since 2009. we can make our private design and logo.
What is the warranty policy?
During 12 months warranty period. any parts running wrong or problems, we will send the free to replace.
