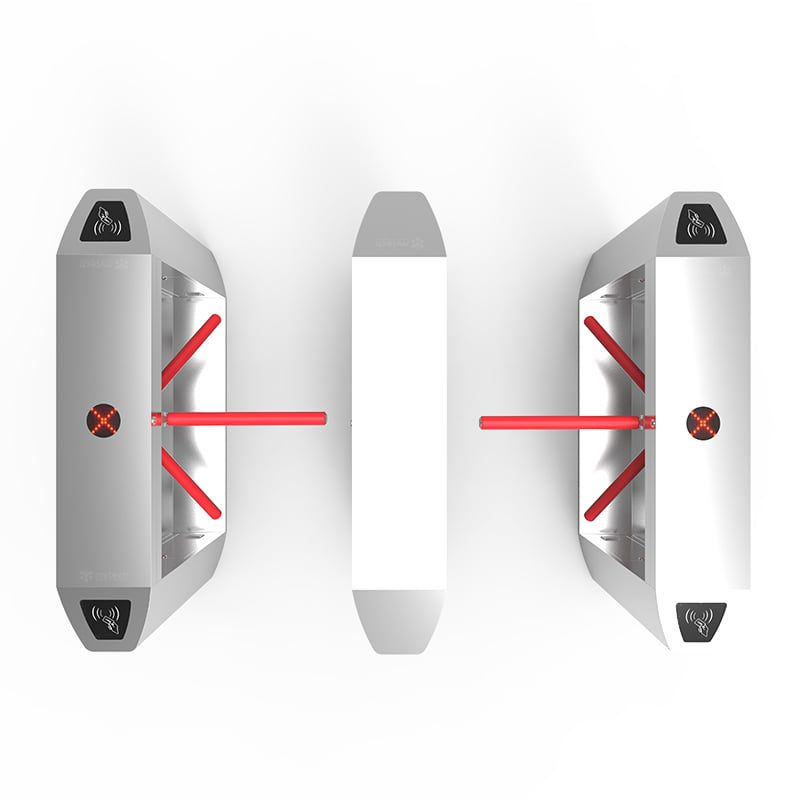

Add Security Intelligent Tripod Turnstile Mechanism
Security Intelligent Tripod Turnstile barriers are also available in a variety of styles, from basic models to more advanced ones that include features such as automatic closing and locking. Additionally, many flap barriers can be customized to match the aesthetic of the building in which they are installed.
1. Security Tripod Advantage:
The electric control adopts DC motor to drive stable and reliable, and has low failure rate. with ultra high light traffic indicator.
2. Remind function:
In the case of a man who does not swipe the card, the alarm will prompt the traveler to swipe card.
3. Alarm Function:
When a pedestrian swipes the card, the device alarms the alarm.
4. Check the following function:
The device will alarm when first people swipe the card when second people doesn’t.
5. The automatic delay function:
prevent people not hitting.
6. Various control functions:
By set the setting, the brake machine can be set at special time to be a regular open mode.
7. The mode of choice:
To meet the different requirements, set up as a two-way credit/ one-way credit card/free pass.
8. Various control functions:
external button, remote control, bar code, IC or ID card, etc.
Product Technical Parameters
| Model Number | MR TT231 |
| Product name | Tripod Turnstile |
| Application | Security Access Control Management |
| Material | 304 stainless steel |
| Power supply | AC 220V/110V 10% 50/60MHZ(optional) |
| Warranty | 1 year |
| Keyboard | Tripod Turnstile steel |
| Working environment | Temperature: -10~+60 |
| Size | 1000*280*1000mm |
| Type | full automatic or semi automatic |
| PASS SPEED | 30-40 Persons/min |
| Drive voltage | DC24V |
| Lane width | <_610mm |
| Net weight | 50kg |
| MCBF | >5.000.000times |
| Access speed | 40 people/min |
| Open Close speed | 0.2sec |
| Rotating Directional | Single and Double adjustable |
| Signal | Dry contract |
| Working environment | Indoor outdoor |
| Temperature | -25 C –70 C |
| Relative humidity | <90% no condensation |

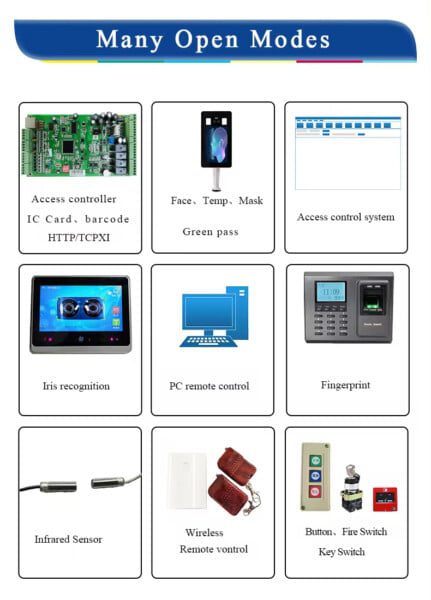

Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
