Add Safety Smart Parking Management for Ticket Payment Solution
Technical Specification:
| Brand | MR TECH |
| Model No | MR PTVM02 |
| Product Name | Safety Smart Parking Management for Ticket Payment Solution |
| Â Ticket Power Supply | AC 220V |
| Power Rating | 100w |
| Digital Input | 5 |
| Machine Type | Automatic |
| Protection level | IP 67 |
| Print Speed | >140mm/sec |
| Resolution | 230DPI |
| Detect Speed | 5 ∼ 10 sec |
| Printing Technology | Thermal |
| Operating Temperature | -20ºC ∼ +60ºC |
| Related Humidity | < 95 % Non condensing |
| MTBH | > 420 Hours |
| Communication Interface | TCP/IP |
| Sensor | Paper Jam, Paper End |
| Digital Output | 6 |
| Operation Life cycle | ≥ 3.5 million times |
| Housing | Â Powder-coated / painted |
| Master Data | 5000 cards |
Applications scenario:
Suitable for parking lots in residential communities, enterprises and institutions, hotels, commercial buildings, government organizations, logistics companies, hospitals, villages, shopping markets, and so on.
Feature of car parking ticket machine
- Modern design, heavy duty, outdoor use. Modern and elegant design, 2.5mm thickness cold rolled steel, heavy duty use. Protection class IP65, waterproof.
- Unmanned entry and exit, labor reduced.Parking management system can realize unmanned entry and exit, low manpower is required for parking management, then lots of labor and cost can be saved.
- Â One card one vehicle.At entry each car is issued a card, and before that car exit, the card cannot be used for access to ensure smooth and effective parking managment Safety Smart Parking Management for Ticket Payment Solution.
- Easy system operation and free maintenance. Parking software is designed to be user-friendly and easy operation, and free of maintenance, which can save manager a lot of trouble and time.
- Vehicle security is ensured.All the vehicle entry and exit time is recorded at system automatically. Added camera at entry and exit, parking attendant can contrast the entry and exit vehicle picture and driver face in software interface to ensure vehicle security.
- Powerful parking collection report. Backend software supports parking collection of different time and time zone and other parking data query and report is created, which greatly improve the effectiveness of parking management.
- Support off line running if local network or pc is down. If local network or PC is down, the entry and exit machine can run independently. And the data stored in entry and exit machine will be automatically uploaded to a computer if connected
- Automatic Barrier gate anti-collision.Working with vehicle detector, during the falling down of barrier gate, when it detects the coming vehicle, the barrier will bounce back instead of hitting vehicle.
- Full parking space detection.Parking staff can input total parking space in software, when the space is full, it will prompt message in computer that the parking is full.

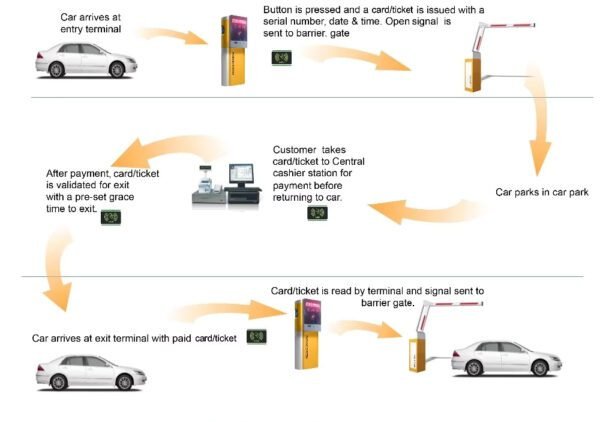

How does the system work?
Intelligent Vehicle Access Control Central Parking System Details
It is that the parkers use the parking card/ticket issued by the system to pass through the parking access control gate. There are two types of parkers, one is temporary parkers, the other is monthly parkers.
–For monthly parkers, they prepaid and get a monthly parking card. They just swipe the cards on the controllers and the barrier gate will open automatically.
–For temporary visitors, they press the button to get a parking card / ticket at entrance controllers and the barrier gate will
open automatically. They need to pay the parking fee according to parking lot management regulations.
For charged payment, there are 3 ways to make the payment.
1. pay at exit manual toll gate
2.pay at center manual toll gate
3.pay at autopay station.
Car parking ticket machine access control system is widely used in residencies, offices, shopping malls, hospitals and other public places for traffic control, management and revenue generation. It can greatly improve the efficiency of parking management,strengthen vehicle security, reduce manpower and cost, and avoid fraud, also gaining profit and revenue for parking manager.
