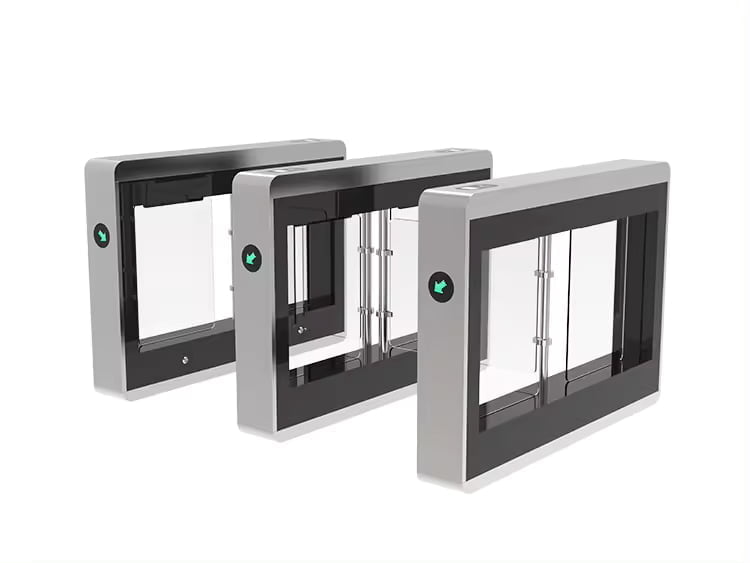

Electronic Brushless Motor RFID Swing Barrier Turnstile SS 304 Material

Click to enlarge

Electronic Brushless Motor RFID Swing Barrier Turnstile SS 304 Material

Electronic Brushless Motor RFID Swing Barrier Turnstile SS 304 Material Entrance Gate Equipped Gym Office Swing Barrier Gate

Quantity	Price	Discount
1-20	₹108,500.00 Piece	0%
21-50	₹103,075.00 Piece	5%
51-100	₹97,650.00 Piece	10%
101+	₹94,395.00 Piece	13%

3 Items sold in last 2 minutes

₹108,500.00 – ₹189,500.00Piece

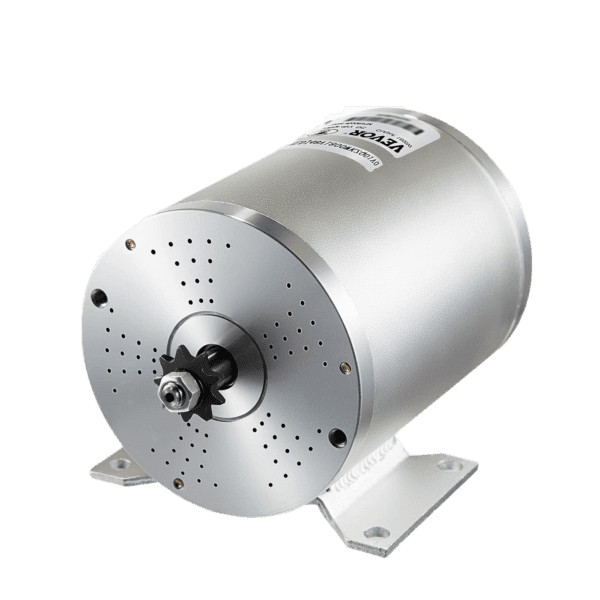

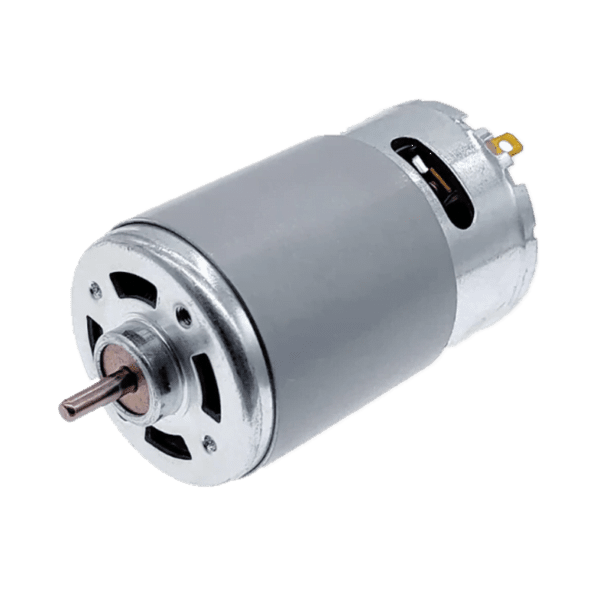

Motor Type	Brushed Brushless
Open Core	Double Single Clear

Add ₹35,000.00 and we will send you the order for free shipping!

Ordered:2

Items available:3

Fast Shipping

20k products

24/7 Support

Delivery

4639 People watching this product now!

Description

Electronic Brushless Motor RFID Swing Barrier Turnstile SS 304 Material

Another advantage of flap Swing Barrier Turnstile is that they can be integrated with other security systems. For example, they can be connected to a card reader or biometric scanner, so that only authorized individuals are able to pass through. This can be especially useful in high-security areas such as airports or government buildings.

1. Only authorized persons can enter through the turnstile. The Three Arm Rod Runing to achieve the purpose such as anti-tailing.

2. Using the multiple anti-clamping designs to protect the personal safety of passengers in maximum limit.

3. The widen lane is optional for carrying luggage and wheelchair access.

4. Equipped with the dry contact signal input interface, compatible with all kinds of access controllers.

5. It with LED display screen and speaker to display the user information (which can be customized)

6. after scaning card in normal condition, if within the permitting time passengers do not pass, the system will cancel the ” pass right and arm close automatically.

7. Arm automatically open when the power off to make sure safety In case of emergency.

8. optional for external counter to record the people numbers for each lane.

Optional Access Control Solutions:

The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.

Product Technical Parameters

Model Number	MR B299
Product name	Electronic Brushless Motor RFID Swing Barrier Turnstile SS 304 Material
Application	Security Access Control Management
size	1400320980mm
Material	SS304 grade stainless steel
Thickness of material	body cabinet 1.0mm, top of cover 1.2mm
Arm material	Acrylic/Glass 10mm thickness
Channel width	≤1000mm
open gate signal input	Dry contact signals, 232 or 485 commands.
Unlocking time	0.2s
Speed of passage	≤35p/Min
Voltage input	AC 220V/110V 10% 50/60MHZ(optional) 220V, 50H; (support adjustable)
Type	full automatic or semi automatic
environmental temperature	-25°C~+70°C
working environment	Indoor/outdoor (under shade)
MCBF	≥5 million
weight	single core movement: 70KG / double core movement: 80KG
configuaration	one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared
Driving Motor	DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w
Alarm	Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current:
Special Functions	1. support normally open, normally closed, power failure door opening, fire linkage. 2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback;
Advantages	The equipment has fault active feedback function, for gate failure, can actively upload fault code, realize the early warning, convenient maintenance Through the management computer to realize remote control door single pass open door, normally open, normally closed, fire control, return to normal and so on.

Secondary development

1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment;

2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ)

patent

patented design products patented movement utility model products

Occasion Application:

Electronic Swing Barrier Turnstile suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
