Horizontal Roller Shutter Doors
Where Are These Horizontal Roller Shutter Doors Applicable?
Our horizontal roller shutter can come with fire protection. these fire-rated horizontal roller shutters can provide security protection for up to 60 minutes. It is the perfect solution if you’re looking to protect your business premises or industrial unit from the spread of fire. If you see a product you like, ask our sales team whether we can adapt it to a horizontal-type roller shutter.

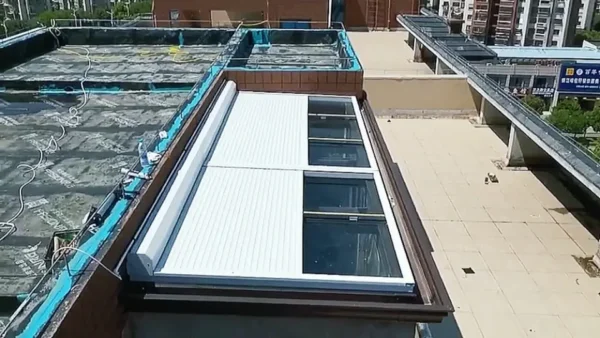

- Available in various configurations, the design parameters are versatile allowing the shutter to be incorporated within light wells, plant rooms, or as special tank covers.
Product Description

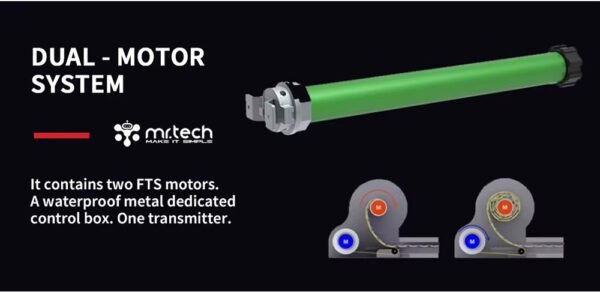

A heavy-duty Horizontal Roller Shutter Door, designed for horizontal installation, operated as standard via a direct drive-mounted motor.
Curtain

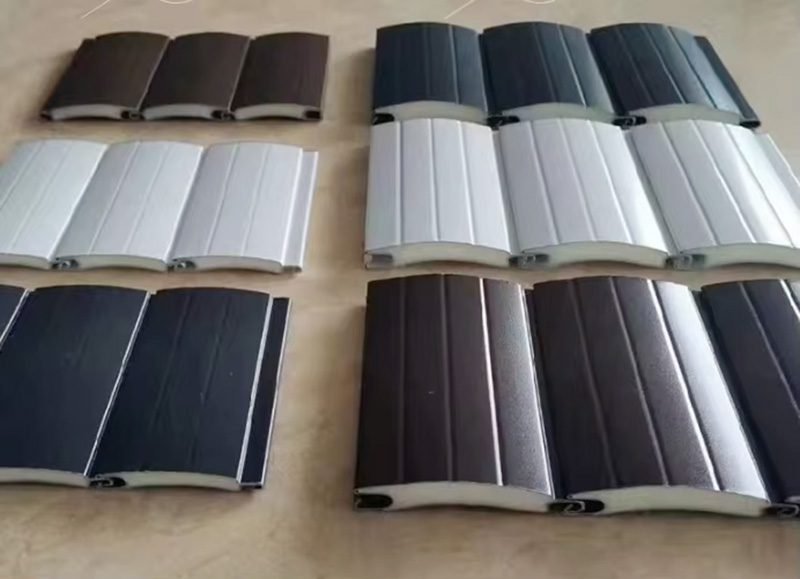

The shutter curtain is constructed from curved section galvanized steel laths with malleable iron endlocks. The laths are connected at each end to the heavy-duty drive chain ensuring smooth running in the side guides. A bottom rail is fitted to provide complete closure.
Shutter box

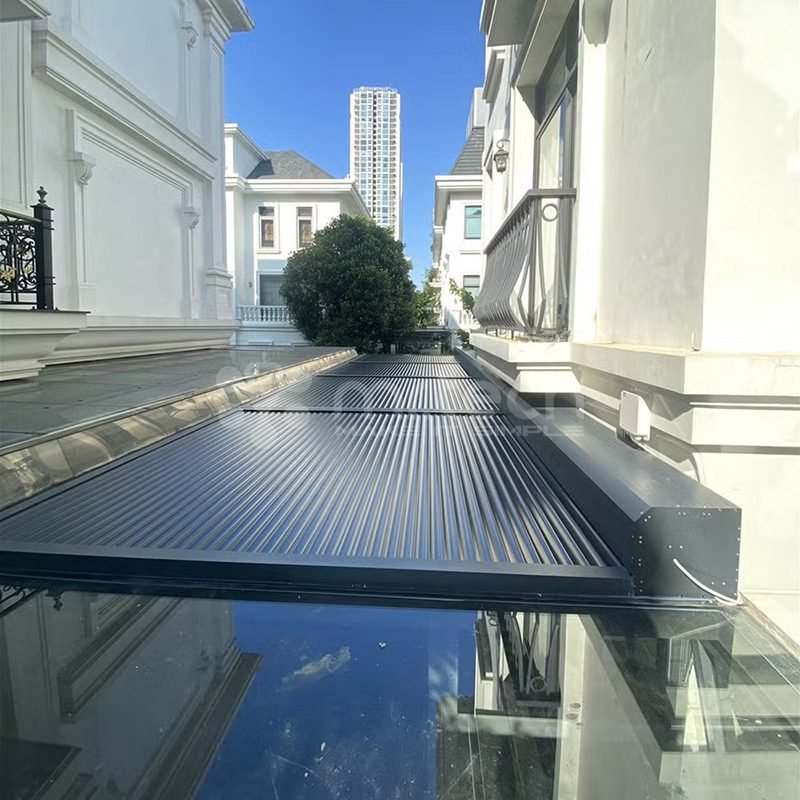

Constructed from suitable mild steel endplates fitted with bearing wheels for roller and gears with securing angles for bolting to the floor. The sides of the box are clad with steel sheets to complete the fire-resisting assembly. The roller barrel onto which the curtain is coiled is mounted on a central shaft which is retained in bearings and incorporates a patented constant tension spring mechanism to ensure even coiling

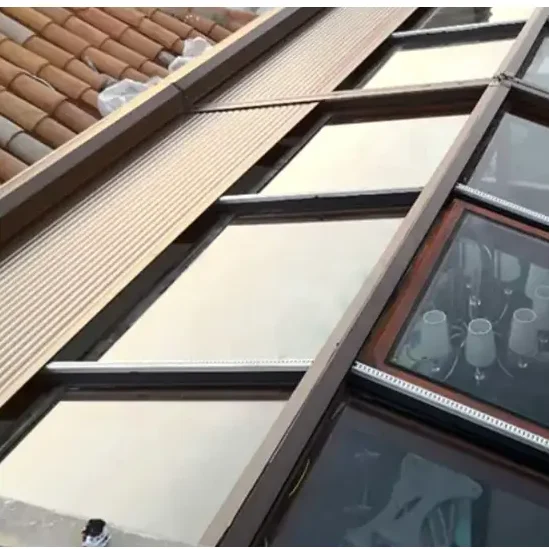

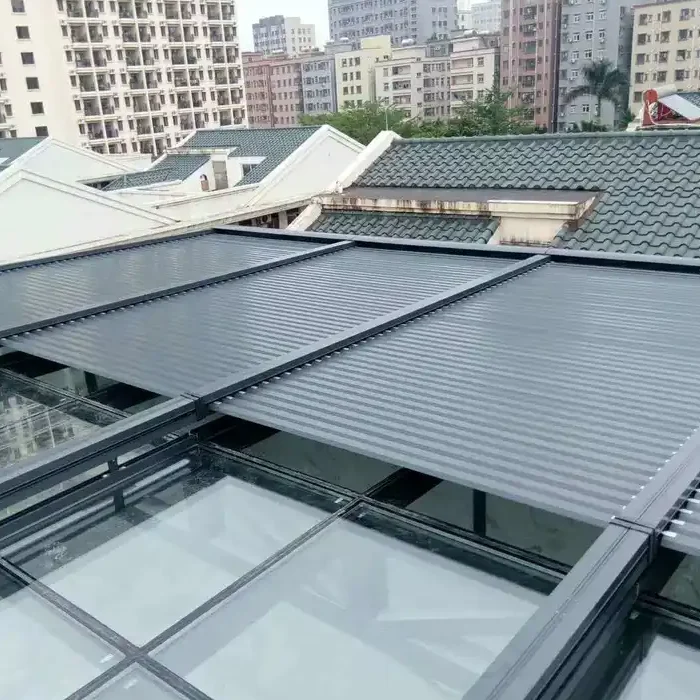

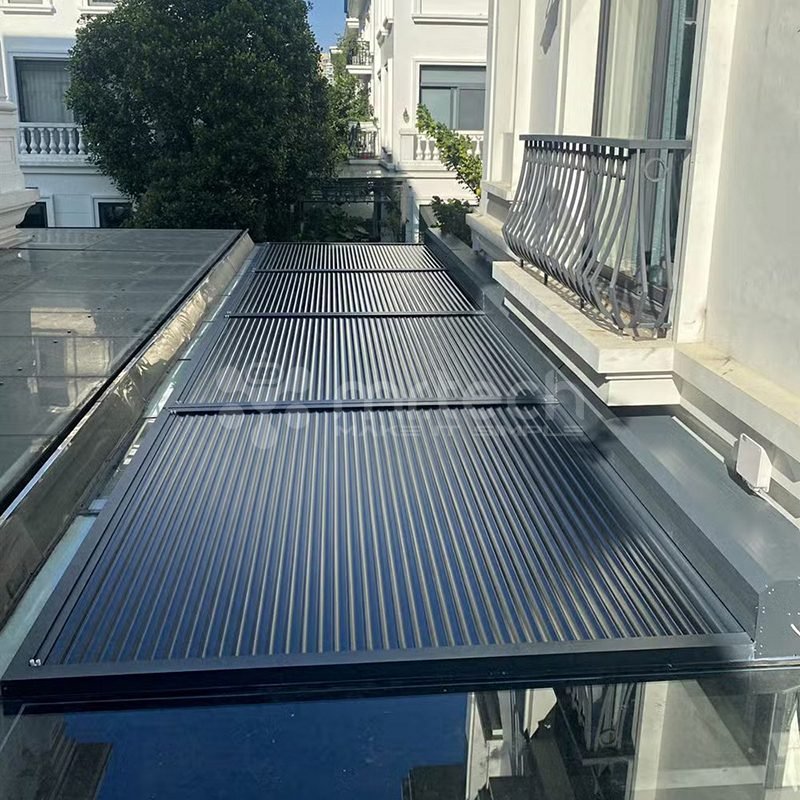

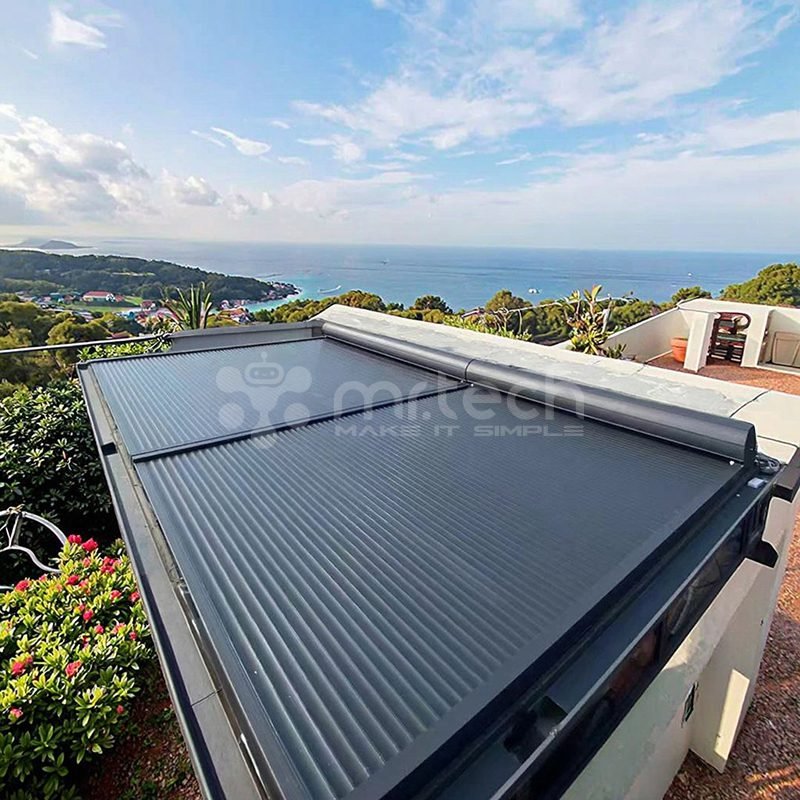

- In many instances, the horizontal shutters are used for fire protection and safety and security barriers during closing hours as well as shade and weather protection for sky roof and void access.
Specification:
| Brand | MR TECH |
| Model No | MR-HRSD01 |
| Product Name | Horizontal Roller Shutter Doors |
| Open Type | Side Roller Shutter |
| Opening Direction | Horizontal |
| Material | Mild Steel, Iron, Aluminum, Stainless Steel, Fabric. |
| Size | Various types of sizes Available Customer Requesting |
| Color | White, Black, Silver, and Costumer Requesting colors are Available |
| Surface Treatment | Galvanized, Powder Coated |
| Maximum Sizes | 6m Wide x 15m Long |
| Size | Customizable Size upon Customer Request |
| Rated Speed | 50 R.p.m |
| Motor Voltage | 240V AC 50/60Hz |
| Design | Customizable Design upon Customer Request |
| Lock Type | Rotary cylinder lock with replaceable core incl. 2keys |
| Function | Weatherproof, Dustproof. |
| Optional products | Manual, Semi-Automation, Automatic. |
| Application | Residential, Commercial, Government offices, office rooms, hospitals, etc. |
| Optional Accessories for Horizontal Roller Shutter Doors | Photo Sensor, Rain Sensor, Flashing Light, Bluetooth Controller, Wi-Fi mobile Access with ( Voice Command Through Google Assistant, Alexa, Siri ), RFID, Vehicle LOOP Detectors, Face Recognition, Bluetooth USB Port. |
Features of Horizontal Roller Shutters:

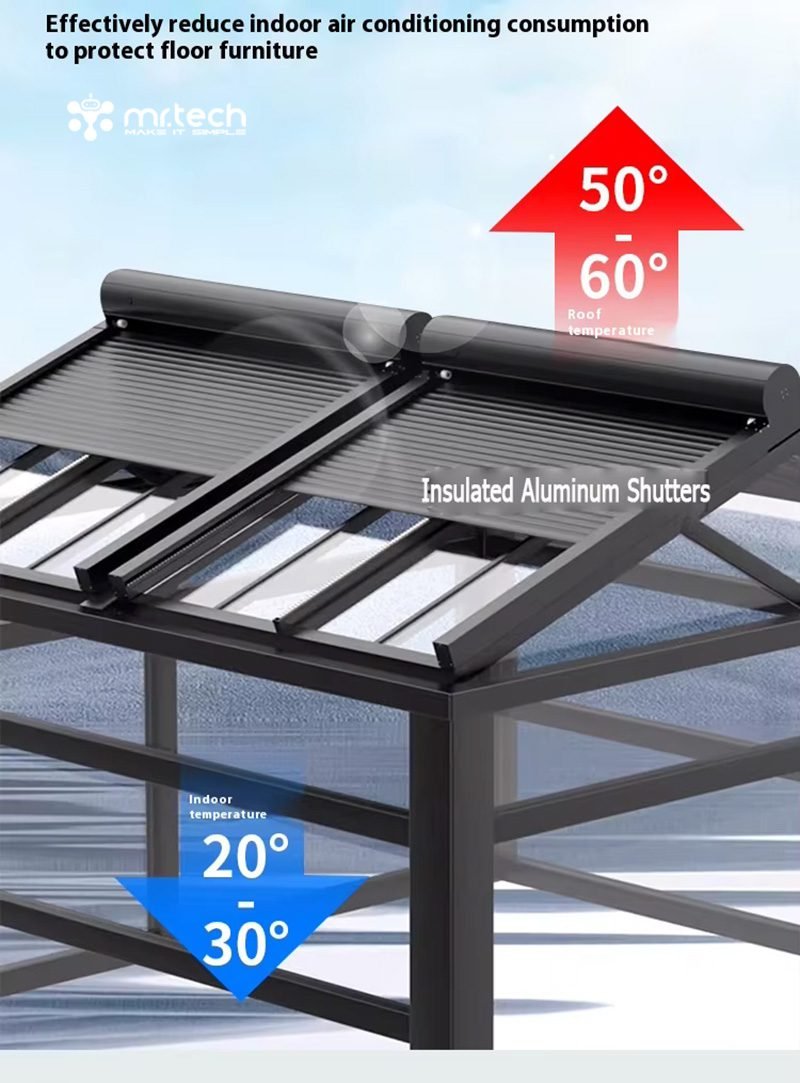

Horizontal roller shutter doors are a cost-effective, sustainable, and energy-efficient solution for protecting space from above
- Galvanized twin-skin steel lath.
- Insulated to 0.6 kmw/m² approx.
- Full weather seals.
- One touch opening.
- Anti-fall safety device.
- Wind loading protection.
- Door operation counter.

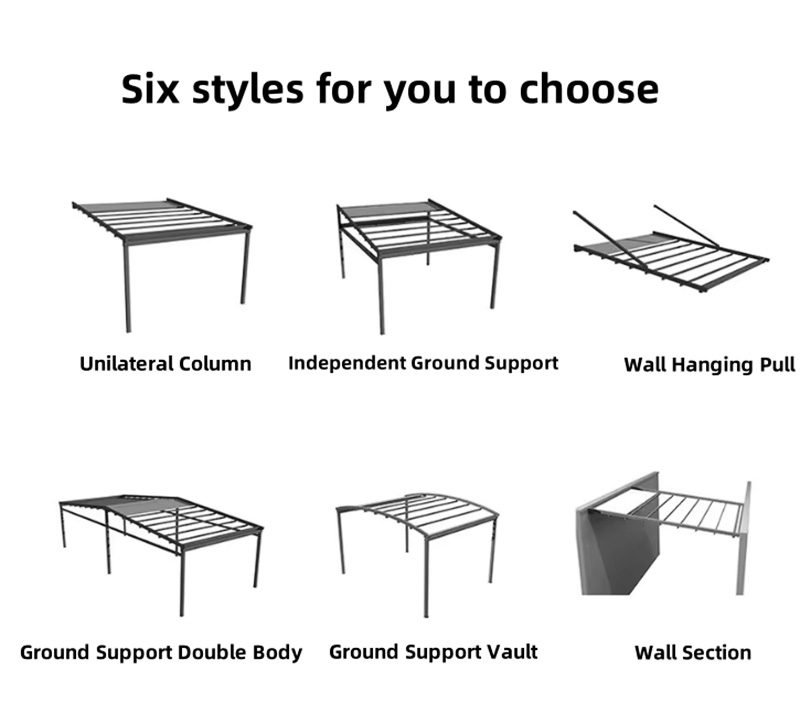

There are more designs to choose and they could be customized, please feel free to contact customer service for more info
| Notice | If you want to place an order, please contact the seller, and we will calculate the cheapest freight for you! |
