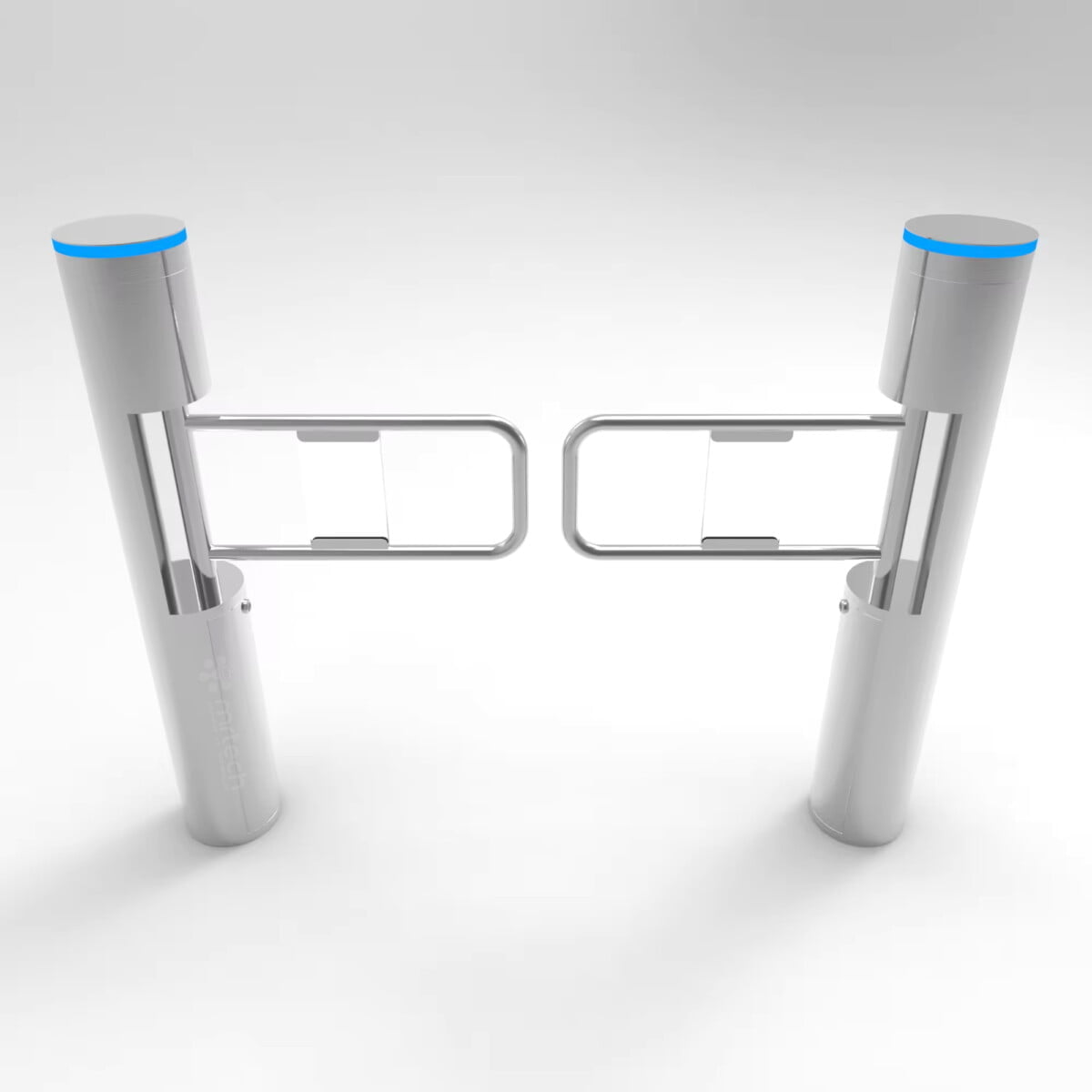

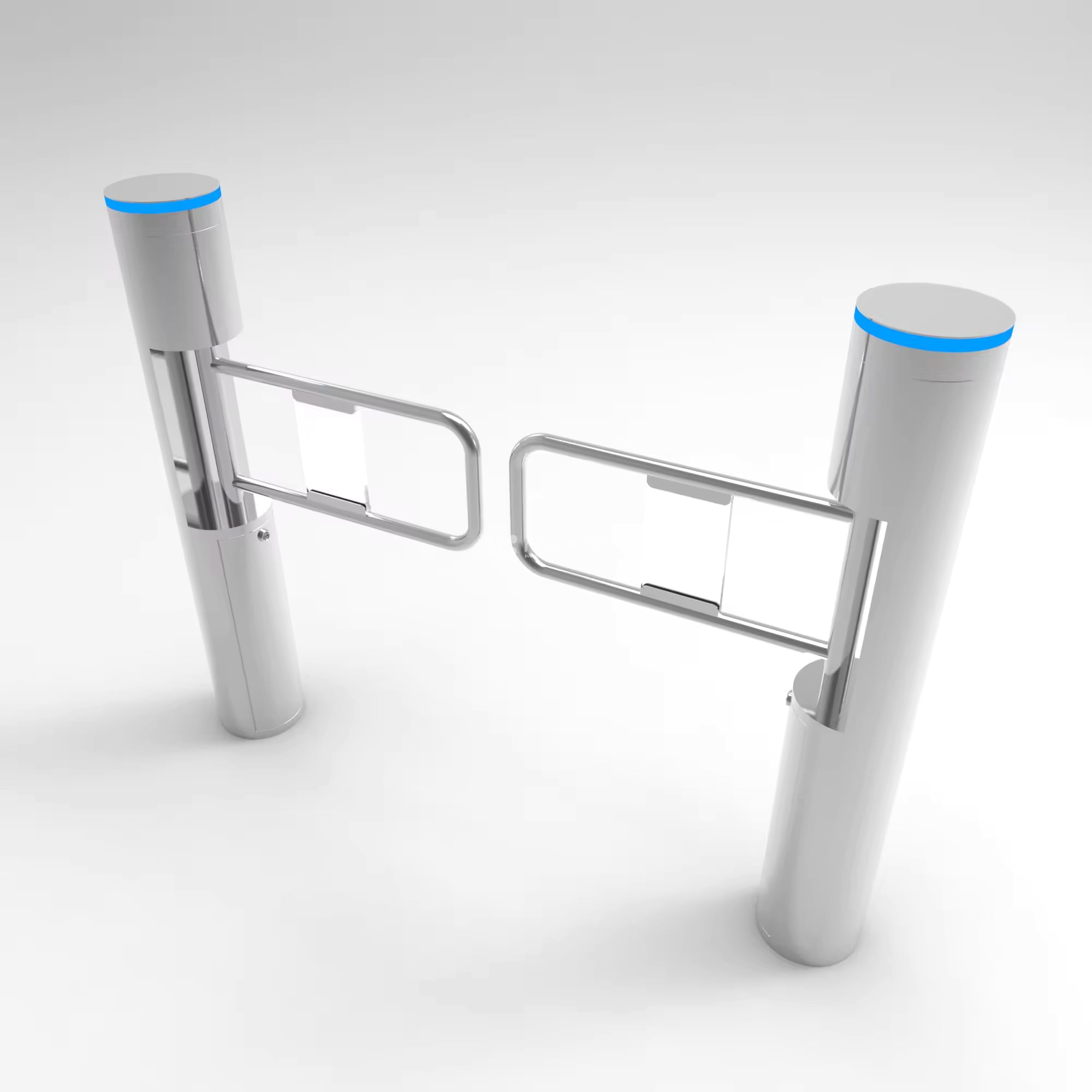

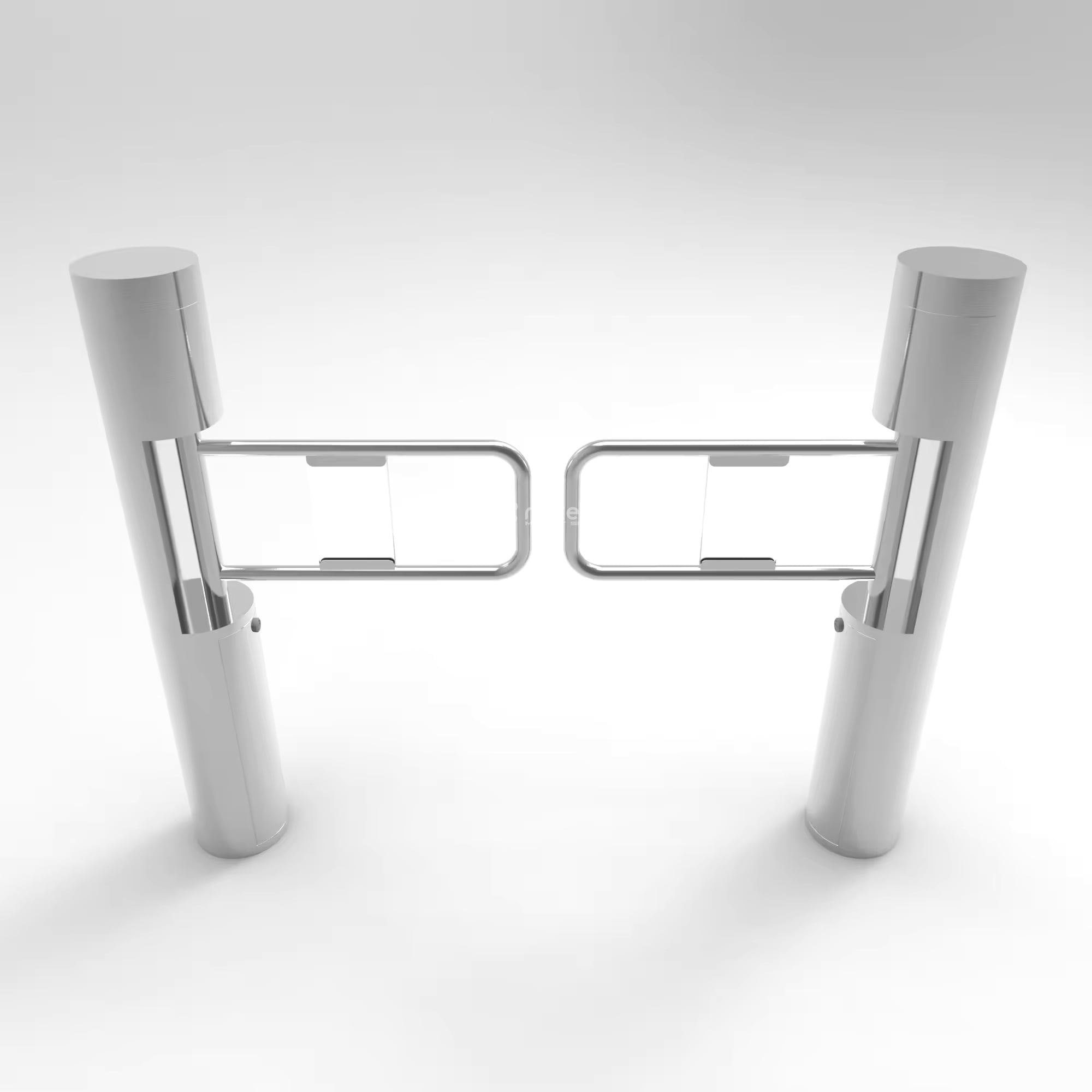

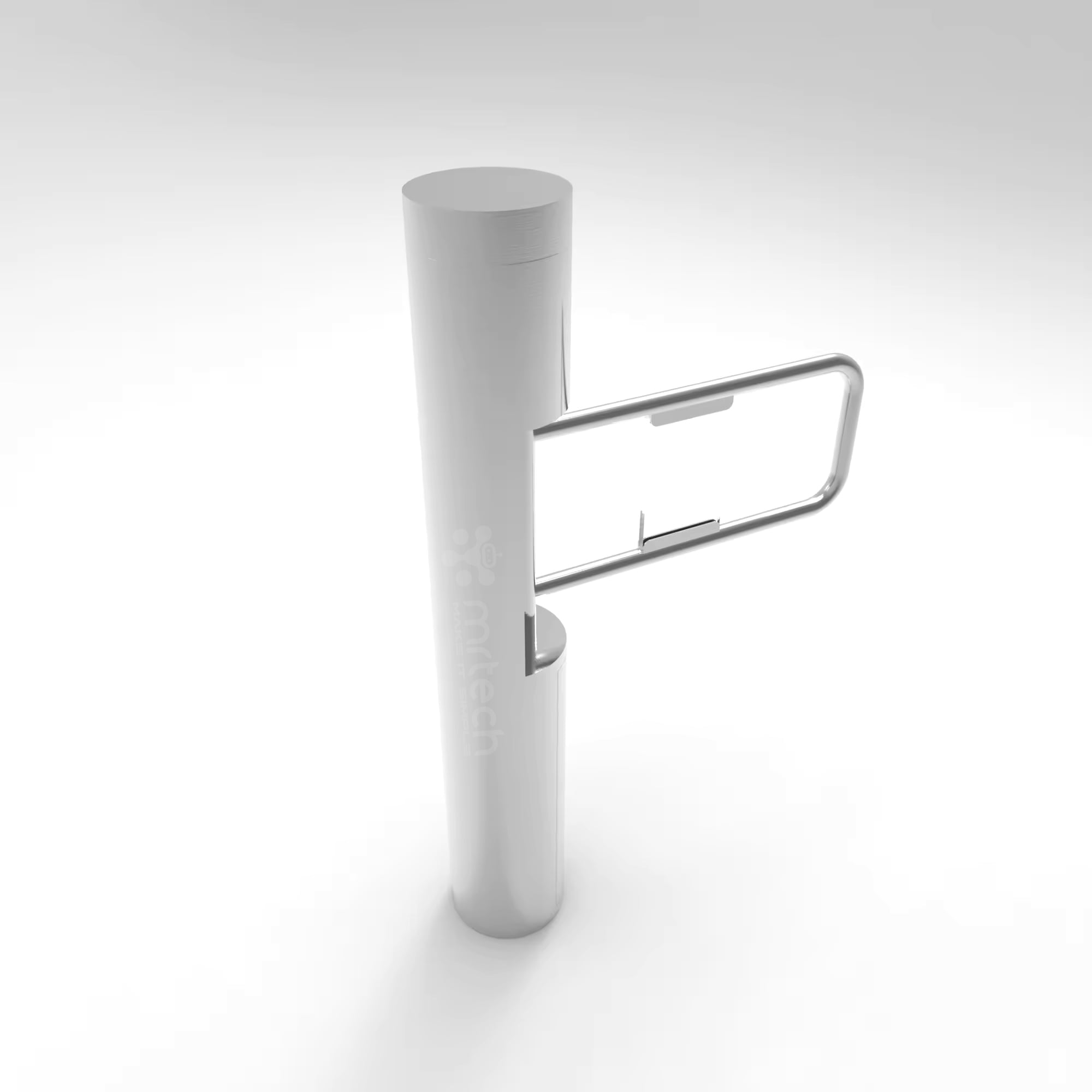

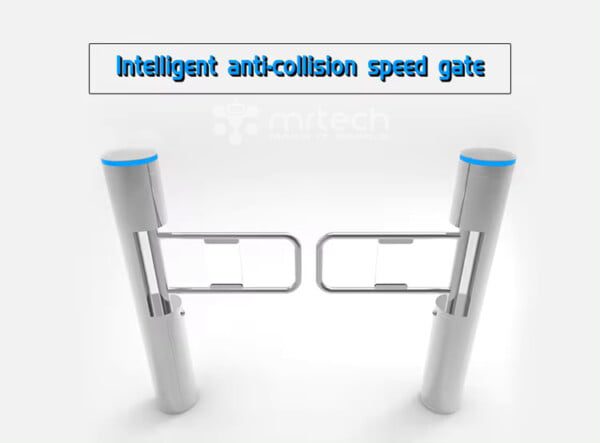

RFID Card and QR Code Reader New Cylindrical Swing Turnstile
It can be integrated with all third-party access control systems(e.g.: RFID access system, push the button, fingerprint and face recognition with temperature check)
In case of emergency, the New Cylindrical Swing Turnstile arm will open automatically connecting with the battery or capacitor to allow free passage.
The optical sliding turnstile is suitable for luxury and elegant solutions.
The sliding gate turnstile features fast speed, long life, high performance, and high operation dependability.
Product features:
With fault self-checking and alarm prompt function, it is convenient for users to maintain and use.
The running status of the device can be programmed through the built-in small button on the main control board;

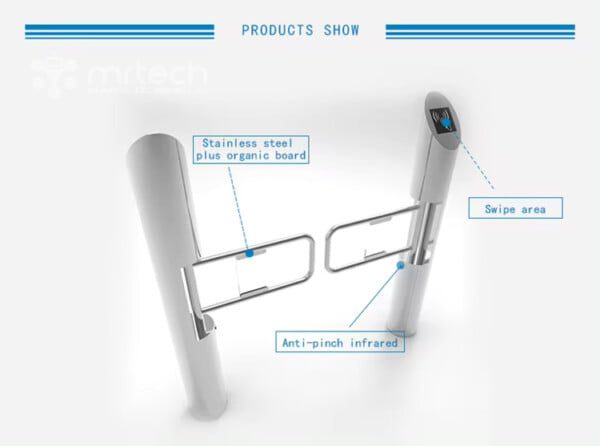

Mechanical structure, induction dual anti-pinch function, when the telescopic arm encounters resistance during the reset process. it will automatically stop or the motor will stop working within the default time, and reset again after the default delay (until the reset, and the force is very small(<2kg);
sound and light alarm function: including illegal intrusion and trailing alarm;
Anti-shock function, the telescopic arm will be automatically locked when it does not receive the opening signal;
The telescopic arm synchronization function;
with automatic reset function. the system will automatically cancel the user’s permission for this pass after the gate is opened and the system does not pass within the specified time. The standard is automatic reset 5 seconds after opening;
Product Technical Parameters
| Model Number | MR B112 |
| Product name | RFID Card and QR Code Reader New Cylindrical Swing Turnstile |
| Application | Security Access Control Management |
| size | 1400*320*980mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | AC 220V/110V 10% 50/60MHZ(optional) 220V, 50H; (support adjustable) |
| Type | full automatic or semi automatic |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single core movement: 70KG / double core movement: 80KG |

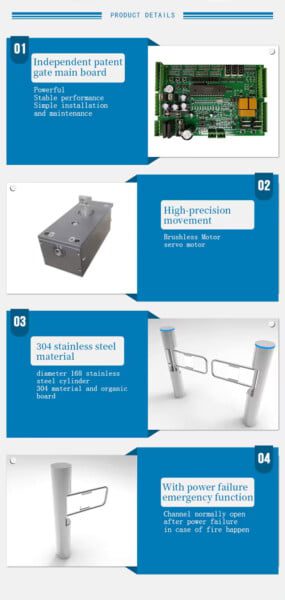

| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage. 2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
| Advantages |
|
| Secondary development | 1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment; 2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
| patent | patented design products patented movement utility model products |

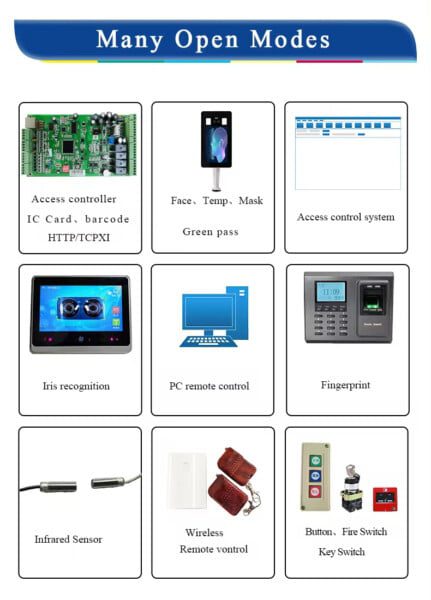

Optional Access Control Solutions:
The Swing Turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
FAQ
Can this swing barrier gate wiyh anti-tailaing alarm?
yes, Anti-alarm is our standard request.
What is the using lif of this RFID Card Swing Turnstile?
More than 5,000,000 times.
Can I using our own access system to control the Swing Turnstile barrier gate?
Yes, the swing turnstile gate can receive the signal from your access control system and running.
Can you offeraccess QR Code Reader Swing Turnstile control system?
Yes, we have our access control system like rfid cards, QR codes, Barcode. Ticket selling systems, face recognition. ect.
Can you make my own brand?
Yes, we have 12 ODM Experience since 2009. we can make our private design and logo.
What is the warranty policy?
During 12 months warranty period. any parts running wrong or problems, we will send the free to replace.
