MR. TECH “CROSSTRACK M 4.0”

Cantilever Hardware For Sliding Gates On Sloping Driveways – 4.0 Mt All-In-One Box Concept 2.85 Mt Compact Parcel

MR. TECH leads the way in thinking Outside the Box for Packaging Cantilever Gate Hardware. Shipping in the 21^st century has mowed off of the box stores into boxes. With so much ordered online, your clients are rapidly changing their habits in purchasing. MR. TECH has been one of the first gate hardware manufacturers to understand the importance of packaging by introducing ALL IN ONE BOX CONCEPT. Compact cantilever sliding gate hardware 2.85 mt BOX

Slope Across A Driveway

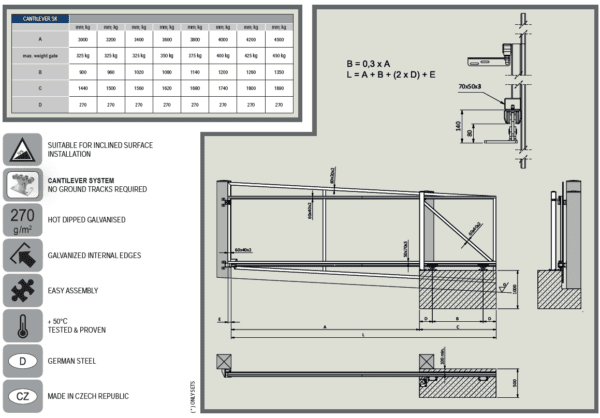

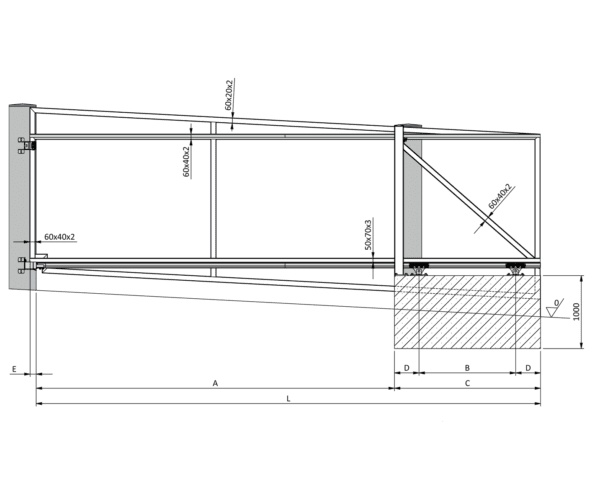

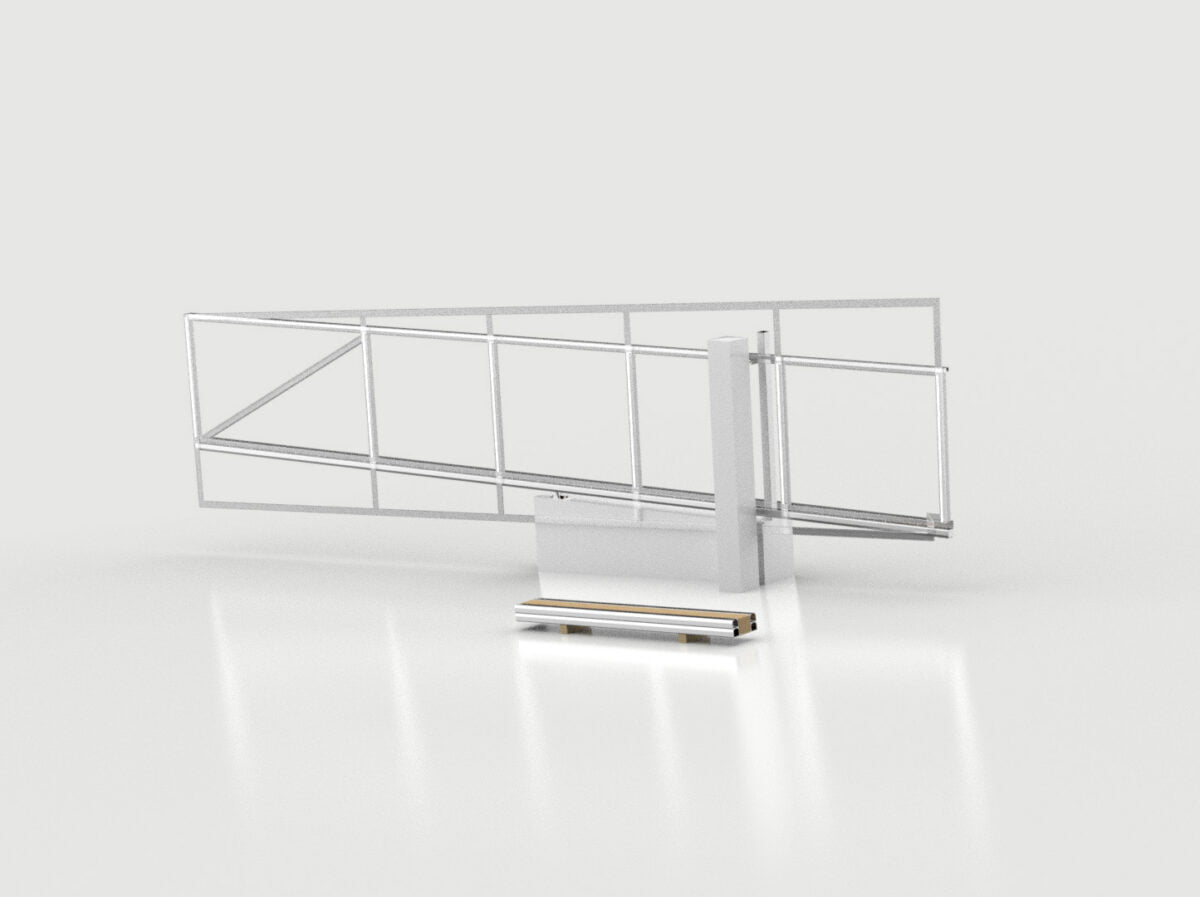

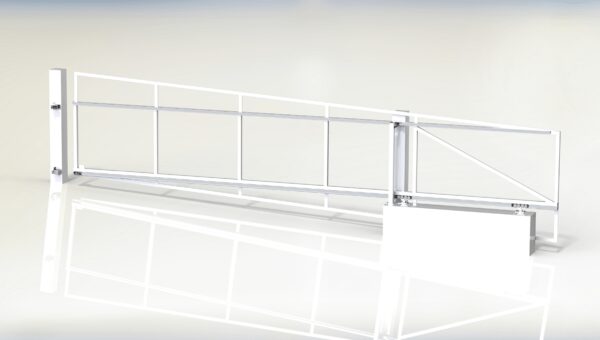

Cross track Cantilever Sliding Gate Hardware For Inclined Driveways can be on driveways that slope across … even if it’s quite steep, this is done by shaping the gate to fit the slope and making the entire track the gate rolls on is straight as possible on the same slope as the driveway.

Generally a larger motor is needed for sliding gates that slope across because it has to lift a portion of the gates’ weight.

Guide System to Use

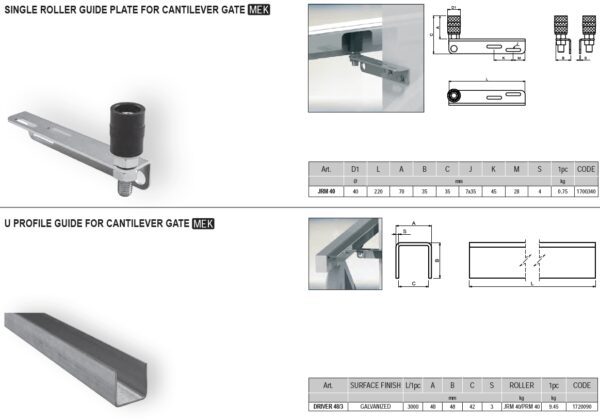

If the top and bottom rails have the same rake (slope), have no palings on the front and the track is reasonably straight a roller guide system may be used. Other a guide rail, block, and post system must be used. The guide block and channel need to be square to the Top Rail and if the top rail is raked the guide block needs to be angled too.

can be Level Opening Downhill

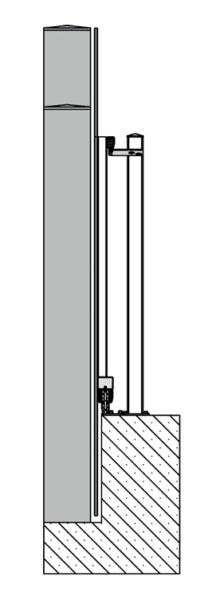

The top of the gate may be level to match a stepped fence and if opening downhill the guide rail can be at the top of the gate because it drops as the gate opens. The guide rail runs through a nylon block … that slides in a channel fitted to a post. The channel must be long enough for the movement of the block.

Slope Up The Driveway

Any slope up or down the driveway from the direction of the road has little effect on sliding or telescopic gates so long as the footing for the gate track is on the same slope as the driveway. With telescopic gates, if the slope from the road is steep the gate heights may need to be adjusted. For very steep grades the wheel will dig into the side of the track to some degree increasing friction so it’s better to make this part not so steep when forming the driveway in the first place.

can be Level Opening Uphill

In this MR. TECH the guide rail rises as the gate opens and must not rise above the fence line otherwise the guide post would need to be higher than the fence, which wouldn’t look so good so the guide rail would need to be set lower down the gate, which normally means having to fit a middle rail or depending on the design of the gate the guide rail may be attached to vertical middle stiles or slats.

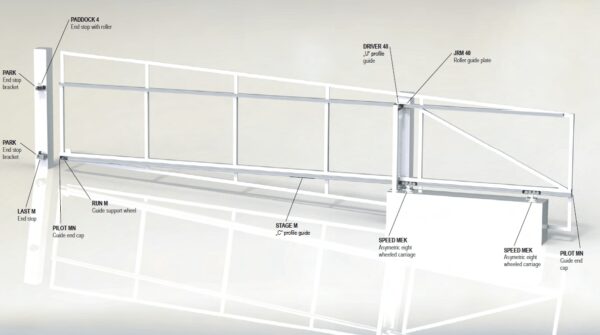

MR. TECH has to ensure that all the gate hardware that your clients need to assemble the CROSSTRACK cantilever sliding gate is included.
See what MR. TECH “CROSSTRACK M 8.0” and “CROSSTRACK M 6.0” includes:
