Commercial and Industrial Overhead Doors
Our Commercial and Industrial Overhead Doors are specifically designed to suit the modern industrial architecture. We offer a complete range of Industrial Sectional Garage Doors, either insulated sandwich panel doors or glazed doors. They provide good air tightness and insulation. They can also be supplied as fully covered or semi-glazed versions for optimal daylight exposure. These Sectional Overhead Commercial Doors are made of high grade pre coated galvanised steel. Sandwich panel 40 mm / 80mm /100mm Thick filled Polyurethane Foam. Environment-friendly PUF insulated panels.
Application
Sectional doors are widely used in areas with high cleanliness requirements, such as factories, military, medicine, food, electronics, Printing, supermarkets, etc. The doors have a beautiful appearance, with features of high strength, low noise and insulation properties.
Product Paramenters / Specification
| Item | Commercial and Industrial Overhead Doors |
| Place of Origin | India |
| Brand Name | Mr. Tech |
| Model Number | MR CIGD74 |
| Max dimension | width * height 12000mm*8000mm |
| Door Material | Aluminum Alloy / Steel + PU + PC , Steel Plate and PU foam insulation |
| Surface Finishing | Finished |
| Power supply | 220±10%V, or 380V, 50/60Hz, IP55 |
| Opening and closing speed | 20-40cm/s |
| Door panel thickness | 40mm/50mm/75mm/100mm/Back rib door |
| PU Denisity | 48±2kg/m3 |
| Wind resistance | 28-35m/s (Class 10-12) |
| Sound insulation level | 24DB |
| Insulation level | 0.38W/M°C |
| Water tightness | 30Pa |
| K Value | 1.5W/M2.K |
| Thermal Conductivity | ≦ 0.033W/M.K |
| Reinforcement | Inner or outside reinforcement both available for long panels |
| Parts | Double or single track parts |
| Surface treatment | Smooth, Micro-wave, Trapezoidal line, V-shaped line etc. |
| Size | Customized Size |
| Color | White nickel white, or other RAl colors. Wood imitation colors/ Customized Color |
| Perspective Window Size & Quantity | Customized |
| Opening Method | Rolling Pull, Overhead Sectional Industrial Door |
| Warranty | 1 year for doors, 2 years for motors |
| After-sale Service | Return and Replacement, Online technical support, Free spare parts |
| Project Solution Capability | total solution for projects |
| Application | Garage/Shop/Factory/Warehouse/Laboratory etc. |
| Function | Protectiveness/Sealability/Perspective/Heat Insulation/Sound Insulation/Windproof/Anti-theft etc. |
| Feature | Electric/Beautiful/High Quality/Durable/Safety/Fast/Perspective etc. |
- Steel door panel are with 40mm/80mm thick, Double-skinned, Poly Urethane Foam (PUF) core.
- Long lasting panels as continuously hot dipped galvanized zinc-coated structural steel
- Finger safe joint panels with EPDM seal to provide intermediate air & water tightness between panel joints
- Insulated panels are with zero ozone depletion potential (ODP)
- Door Panel Insulant has a low global warming potential (GWP)
- Biological Panel are immune to attack from fungi, mould & vermin.
- Sound Insulation can be achieved.

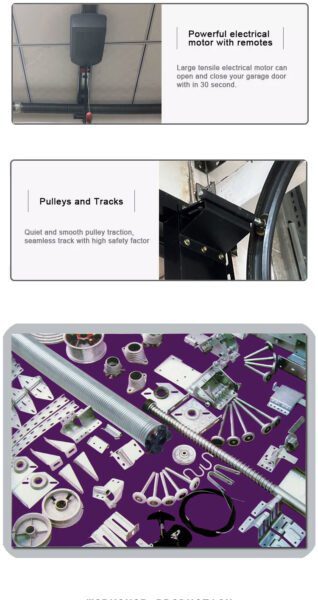

- High precision hinges made of galvanized steel, roller guide with adjustable ball bearing rollers are provided for smooth movement of the door.
- Easy-to-integrate interlocked side wicket doors ensure that pedestrian movement can be diversified
- Industrial sectional doors are maintenance-friendly, resulting in minimal service costs.
- Advance electronic imported direct drive & intelligent control
