Safety Equipment In Car Under Vehicle Scanning System (UVSS)
Under-vehicle surveillance systems are mainly adopted to inspect the beneath part of a variety of vehicles. It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom. UVSS greatly improved vehicle safety inspection speed and accuracy, and reduced investment in human resources.

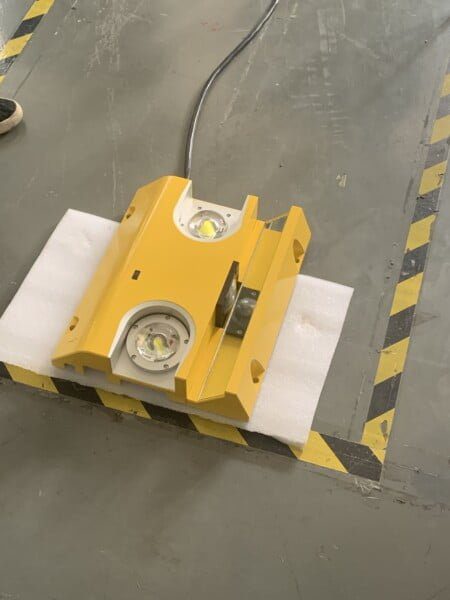

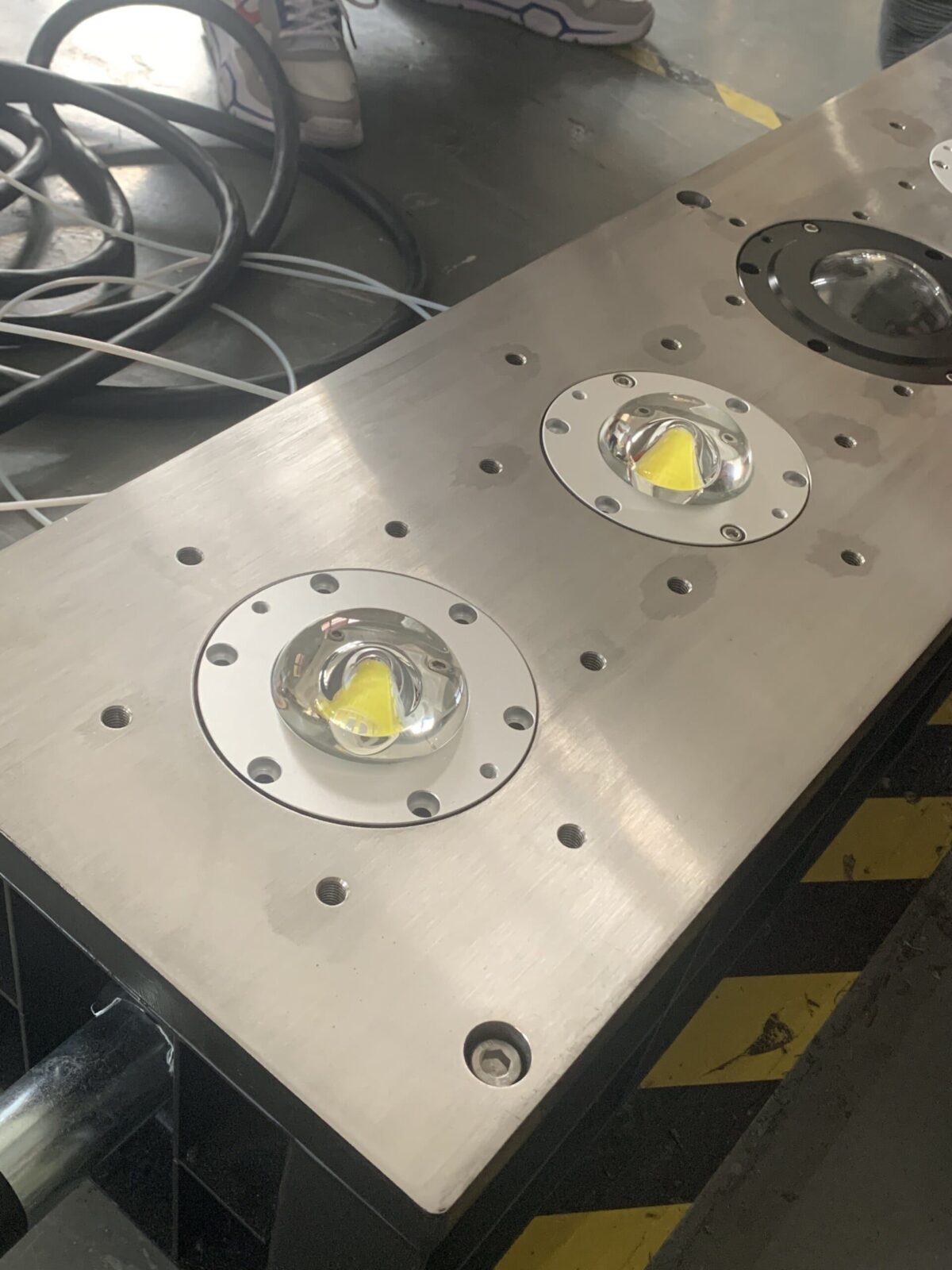

fixed under vehicle screening system with inspection mirror or inspection camera
Main Features:
- Automatic digital line scan camera, with high-resolution and clarity of the image.
- The complete image of under vehicle scanning, without any omissions, and the image is clear, complete, with no distortion, can be observed that the object is not less than 2mm in diameter.
- Preparation of inspection processes to meet a variety of on-site needs.
- Multiple scene image monitoring, and recording function.
- Multi-language user interface design.
- Strong scalability to easily achieve a variety of system linkage control.
(Optional)ALPR(Automatic Licence Plate Recognition) (E.g.: anti-collision system, barrier, etc.).(Optional) Multiple devices networked control functions.
Technical data
| Vertical resolution of the image | 5000*2048 pixels |
| Check the width viewing angle | < 4 meters |
| Speed of vehicle | < 30km/h with ALPR(Automatic Licence Plate Recognition) < 70km/h without ALPR(Automatic Licence Plate Recognition) |
| Effective Field of View(FOV) | less than 170° |
| Auxiliary light | 100W |
| Weight capacity | <20T |
| Water-proof grade | IP68 |
| Scanning device weight | 24KG |
| Scanning device volume | 450mm×400mm×88mm |
| Communication interface | RS232/RS422 |
| Operating Temperature | -10℃ to 55℃ |
| Storage temperature | -40℃ to +75℃ |
| Operating voltage | 110-240V AC, 50-60HZ |
Display language
Support Multi-language display Ex. Chinese, English, Thailand, Saudi Arabic, Bangladesh, Mongolia and so on Scanning System
Vehicle Scanning System Host
| Brand | Grantech (UFO6377H-SP1-953) |
| CPU | Intel® Core(TM) 2 Duo CPU |
| P8600 | 2.4GHz or higher |
| Memory | 2G( optional 4G) |
| Graphics | Inter(R) Gen 5.0 Integrated Graphics Engine |
| Hard Disk | SATA2 Hard Disk 500G |
| Dual LAN | At least one Intel Gigabit |
| Monitor | 22inch LCD, resolution up to 1920*1080 |
| USB2.0 | Â Up to 4 pieces |
Application:
airport, prisons, customs, and other government departments, and large public places’ parking lots for the inspection of vehicles and whether there are prohibited items.
security check for large-scale activities, exhibition entrance, and exit.
