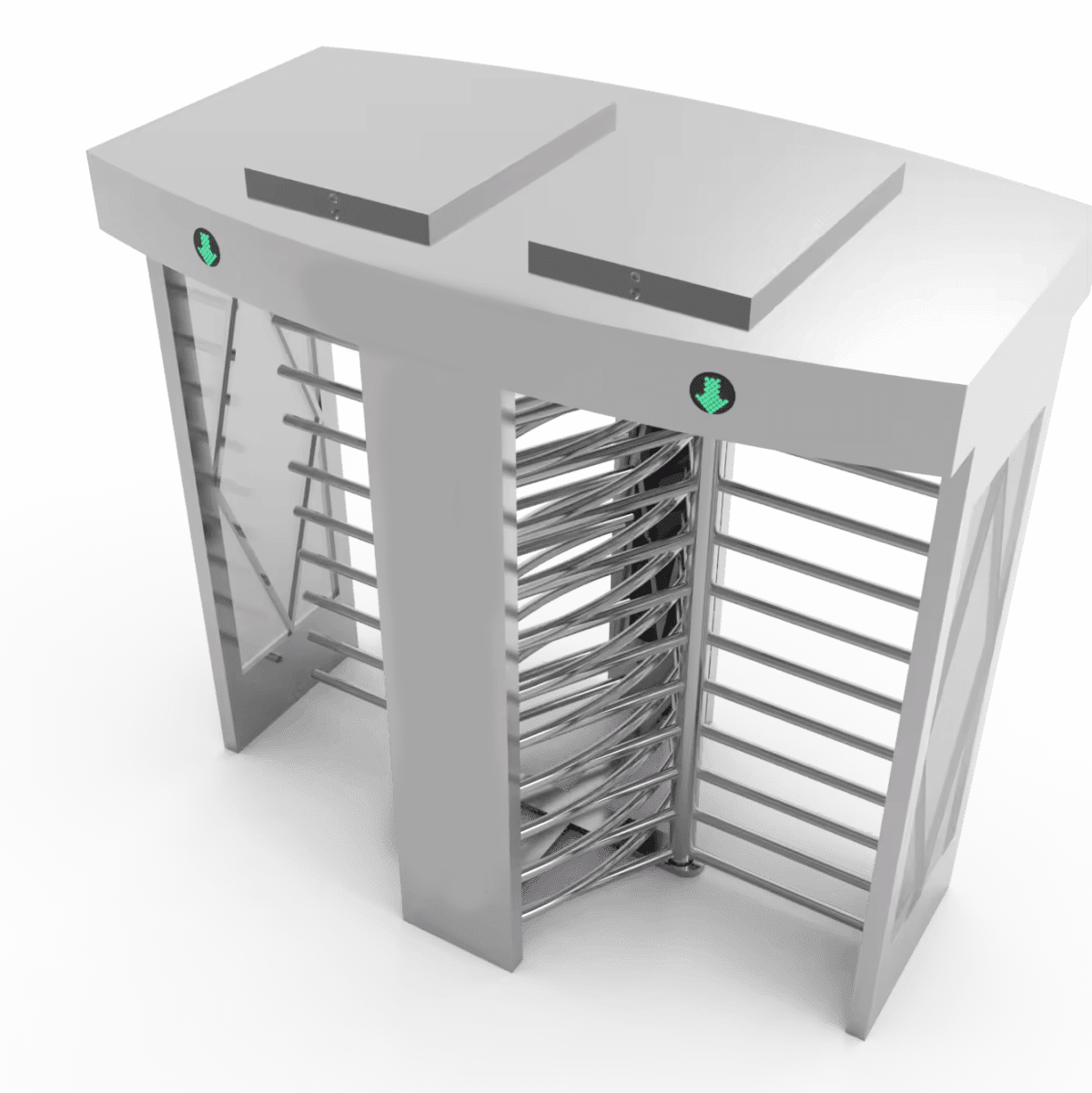

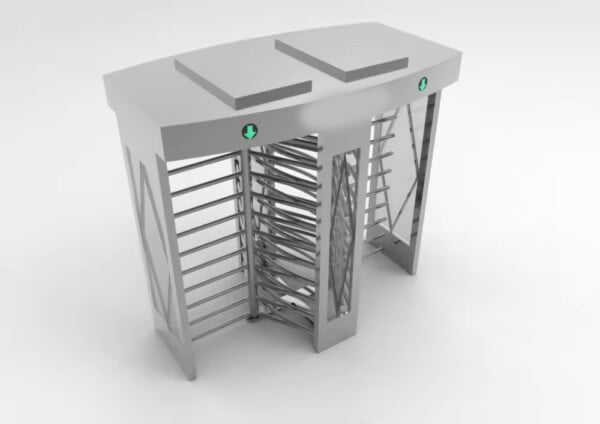

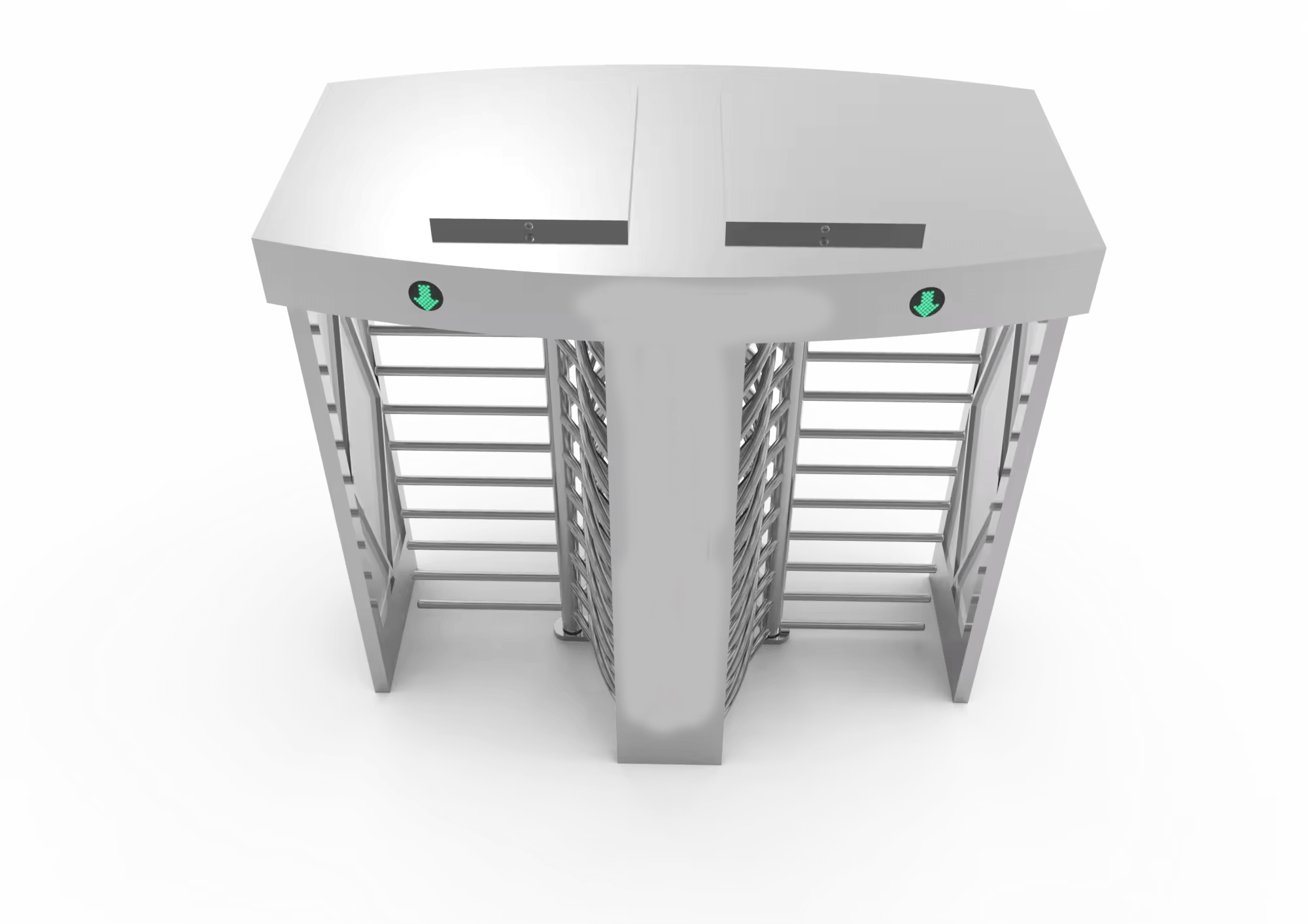

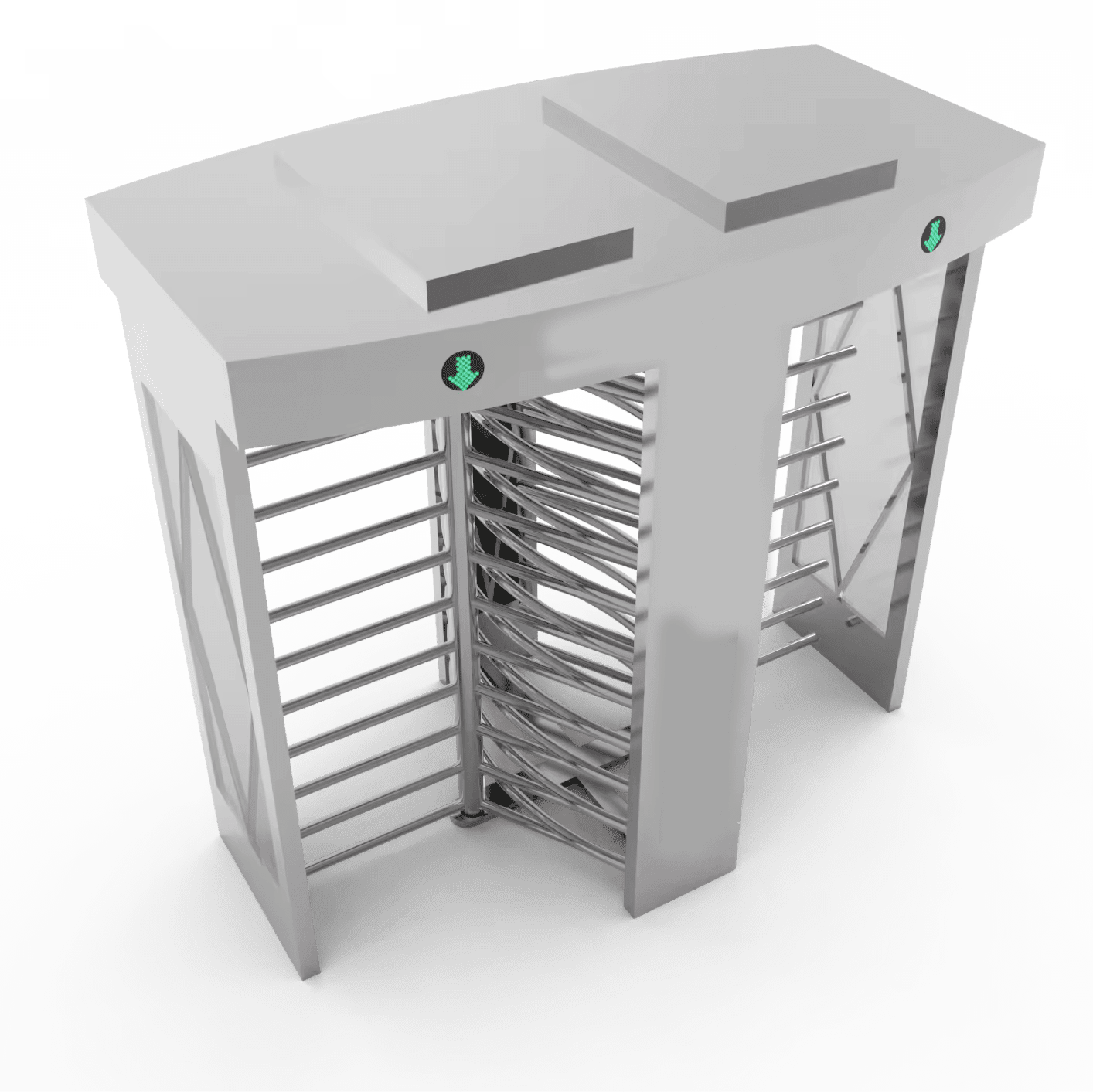

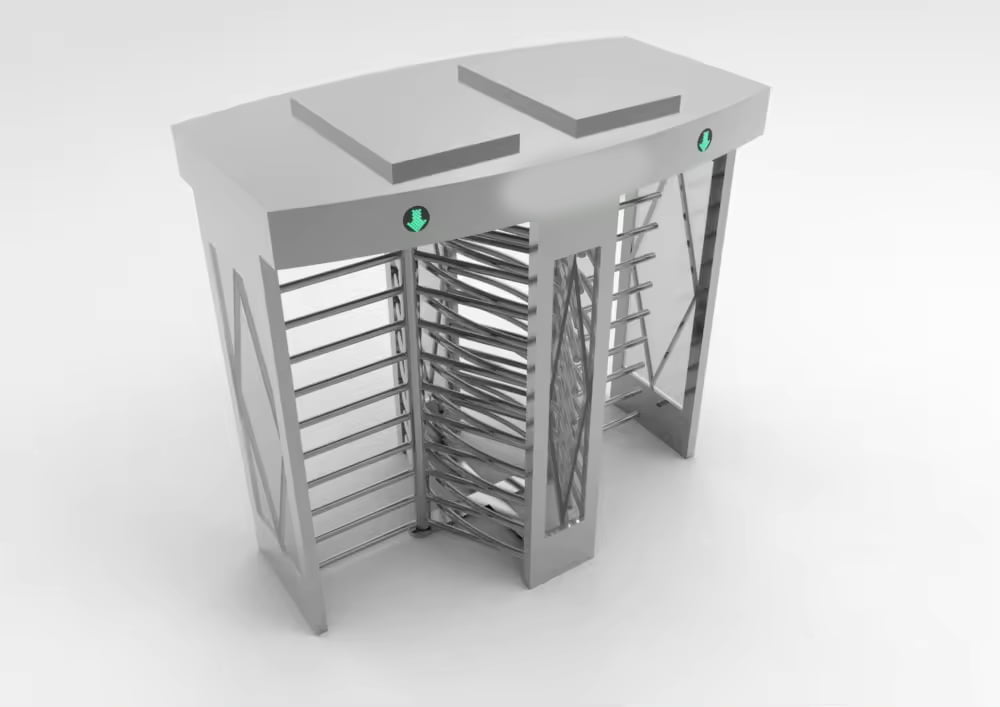

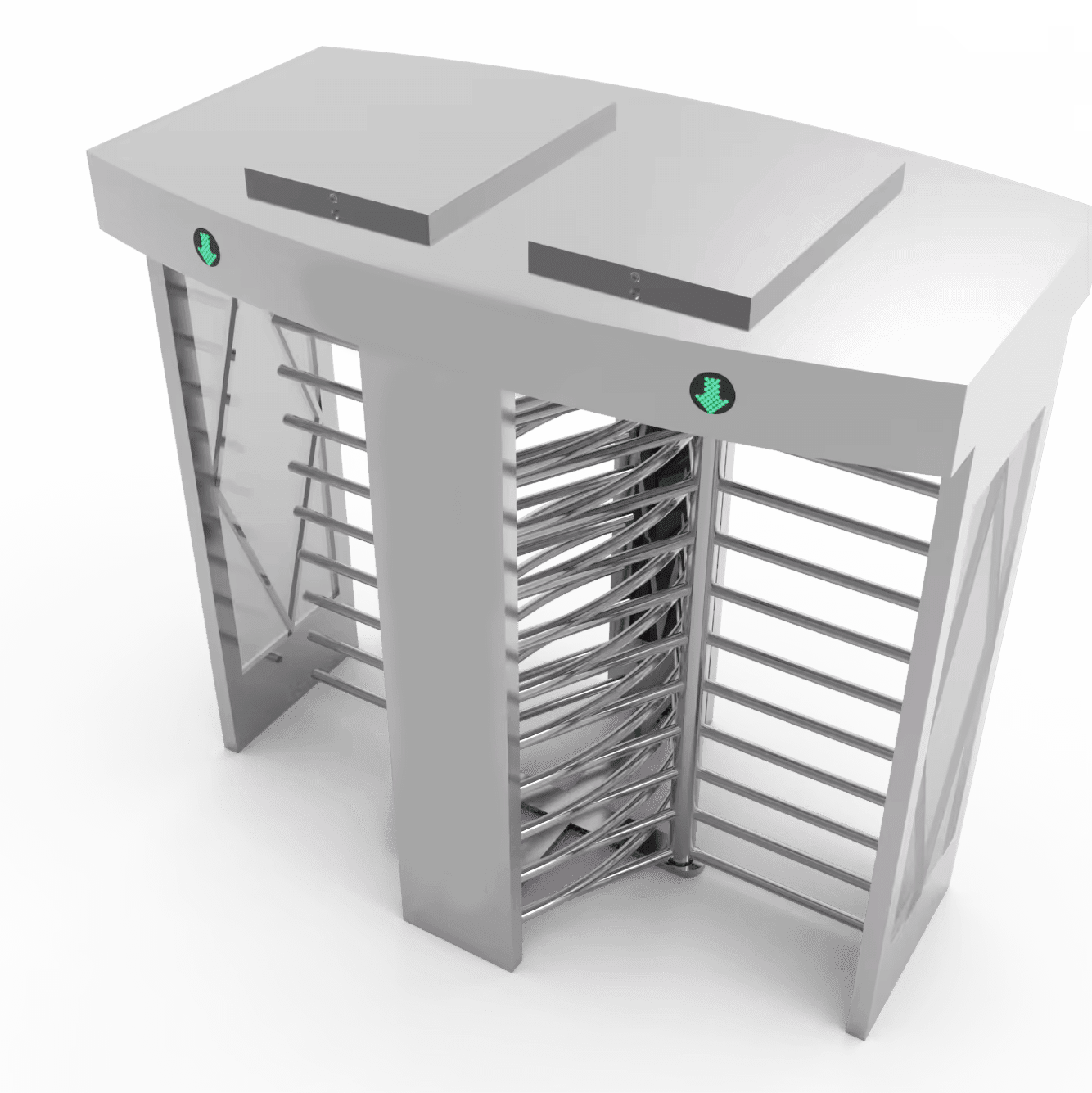

Semi Automatic Biometrics Turnstile Access Control System
Combining cutting-edge technology and sleek design, these security Turnstile Access Control System offer unpatrolled performance, reliability, and aesthetics, making them ideal for a wide range of applications. With three cabinet designs-sculpt, edge and contour-you can choose from different sizes, materials, and finishes to create a security solution that is one of a kind.
Product Technical Parameters
| Model Number | MR FHT759 |
| size | 2400*1350*2260mm |
| Material | SUS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | 220V, 50H; (support adjustable) |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single movement: 50KG, double movement: 70KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC brushless motor: 24v/40w |
| Alarm | turnstile gate parts Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage. 2.Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3.The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
| Advantages |
|
| Secondary development | 1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment; 2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) turnstile gate pronunciation |
| patent | patented design products patented movement utility model products |
Our Advantages:
- 13 years of access control system solution service supplier.
- Enterprise with patended technology for the whole industry of access turnstile gates.
- Enterprise with the patents for a full range of the same style of access turnstile gate.
- Possess technology enterprise certificate, ISO quality system management certification.
- The product with CE, SGS certification, and the department of public safety test report.
- Support secondary development and customization of hardware and software such as access turnstile gates, access control, face recognition, etc.
- Appearance design patent, movement utility new model patent, gate control board patent.
- Software patents of smart scenic spot ticket sales system, smart building cloud visitor system, smart community system,All-in-one card management system, etc.
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint Biometrics Turnstile, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
