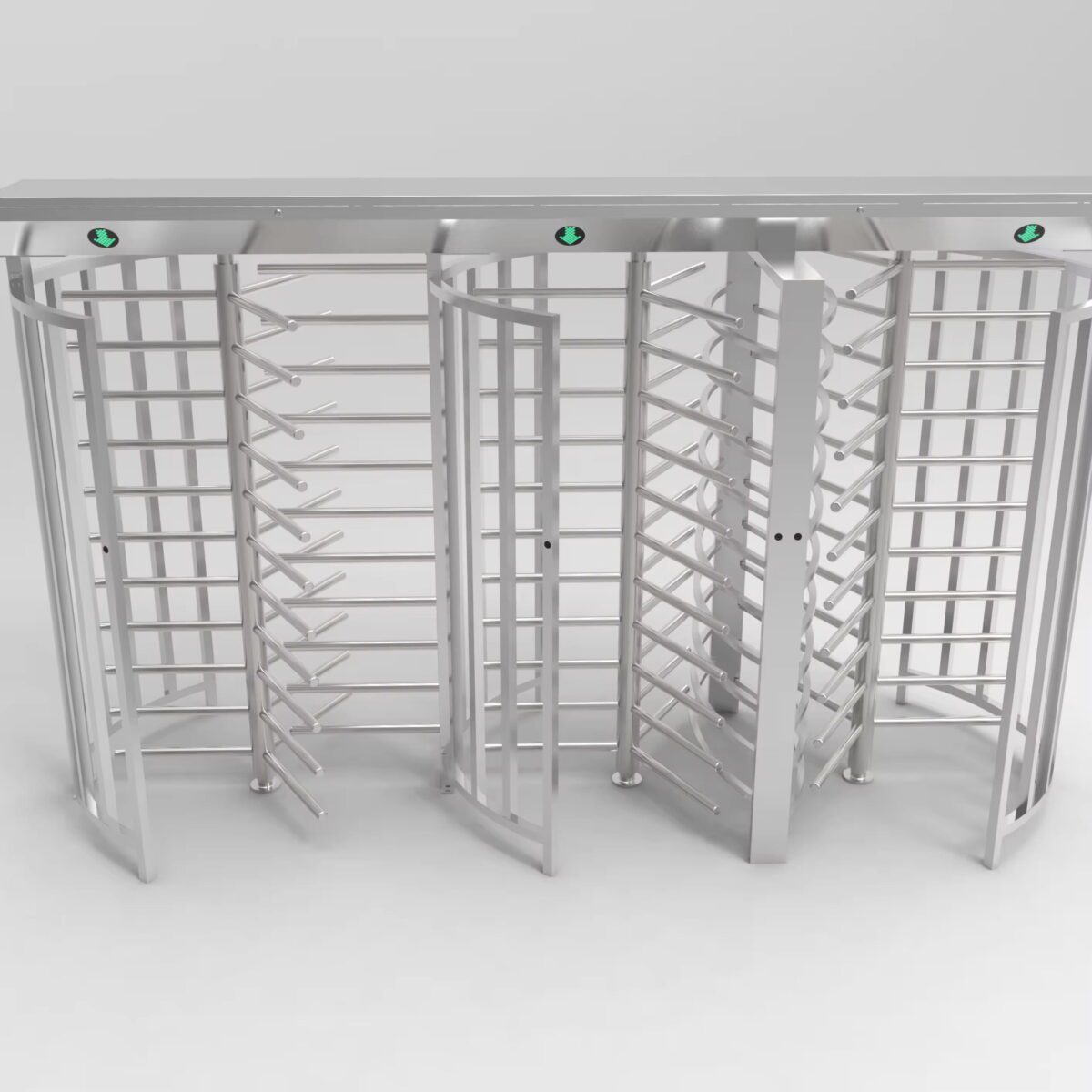

Bidirectional Secure Passage SS Full Height Turnstile Gate
Full height turnstiles are ideal for security and crowd management at the entrance-mainly to the important areas that need high security nd management to pedestrian flow.
Product Technical Parameters
| Model Number | MR FHT739 |
| size | 3600*1350*2260mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | 220V, 50H; (support adjustable) |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single movement: 50KG, double movement: 70KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC brushless motor: 24v/40w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Special Functions | 1. support normally open, normally closed, power failure door opening, fire linkage. 2. Support memory mode, automatic reset, free to set the passage time, support timeout feedback, the device can be set remotely more than 10 kinds of flexible configuration gate mode. 3. The equipment supports remote control of pedestrian passage time settings, as well as infare delay settings, and can be set in real-time feedback; |
| Advantages |
|
| Secondary development | 1. tripod turnstile gates, swing gates, wing gates, speed gates have a unified secondary development interface, a docking, can be connected to a variety of equipment; 2.can also provide the gate 485 development protocol, has been encapsulated industrial control machine docking gate development agreement (can provide RS485 protocol, windows APJ, Limoux APJ) |
| patent | patented design products patented movement utility model products |
| Special Functions | 1. power failure open gate or power failure close gate is optional, default power failure open gate 6. Legal passage electronic booster pusher, illegal passage lock clutch. 2. support memory mode, automatic reset, free to set the passage time, support the passage of the completion of the feedback, equipment can be set remotedly more than 10 kinds of flexible configuration of the gate mode; 3. Equipment to support remote control of the pedestrian passage time settings, and real-time feedback settings; 4. Equipment to support the passage of the completion of the feedback, fault active feedback function for the gate failure, can actively upload the fault code, to achieve early warning, easy maintenance; 5. Realize early warning, convenient maintenance; 6. Through the management computer to achieve remote control door single pass open door, multi-pass open door, normally open, normally closed, fire control, return to normal, etc. |
| Secondary development |
|
Customized Function:
- Built-in or external counter
- External gate open button or remote controller
- 316 grade stainless steel. Thickness of the material
- Lane width can be made based on the requirement
- Arm material organic glass, tempered glass, acrylic
- Integrate with access control system and built-in reader appointed by customers
Optional Access Control Solutions:
The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
