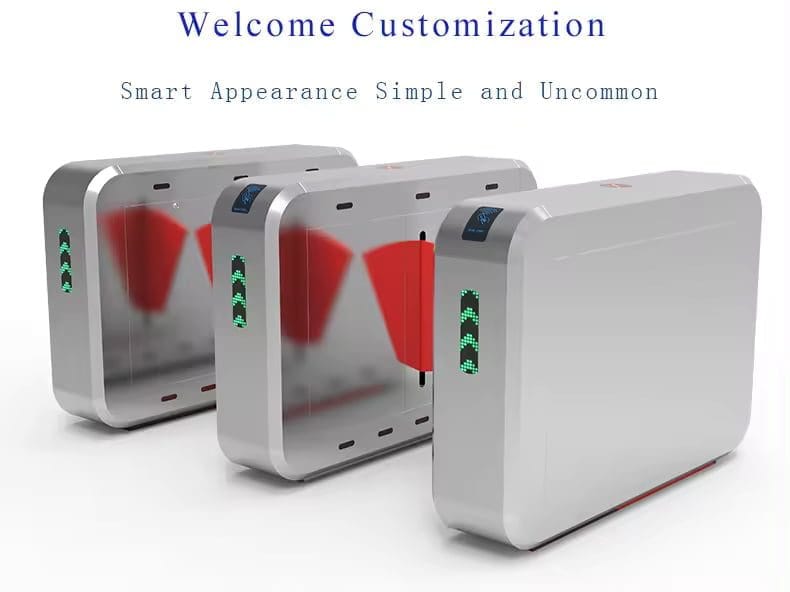

Add Flap Turnstile RFID Card Reader Control 304 Stainless Steel Barrier
Sliding turnstile is a kind of pedestrian access control turnstile gate based on the parallel linear movement of two baffles in the same or different directions to open and close the door.
The sliding turnstile Flap Turnstile RFID Card Reader Control 304 Stainless Steel Barrier is an electric controlled automated turnstiles gate, which can be opened and closed manually through buttons, cad swiping, and remote control, or fully automatic through face recognition and human body induction. At present, it is commonly used at the entrance gate of various residential areas, enterprises, factories, and other places. which is specially used to control pedestrian access.
Features and Function of swing Barrier:
1. 304 stainless steel, Apperance design, generous, beautiful, humanized design. Appearance can be customized; .Â
2.High-performance integrated control panel, strong anti-interference ability, stability system, Drive module does not    heat heat, Low power consumption;
3. Scour protection function; when the open signal is not received, arm will be locked after 5 degrees rotation;
4.Automatic reset function: After turnstile opened, not pass within a specified period of time,
5.Read the card with memory and without memory function: users can be set using the keyboard according to their needs;
6.Audible alarm function: Including unlawful entry, trailing and anti pinch;

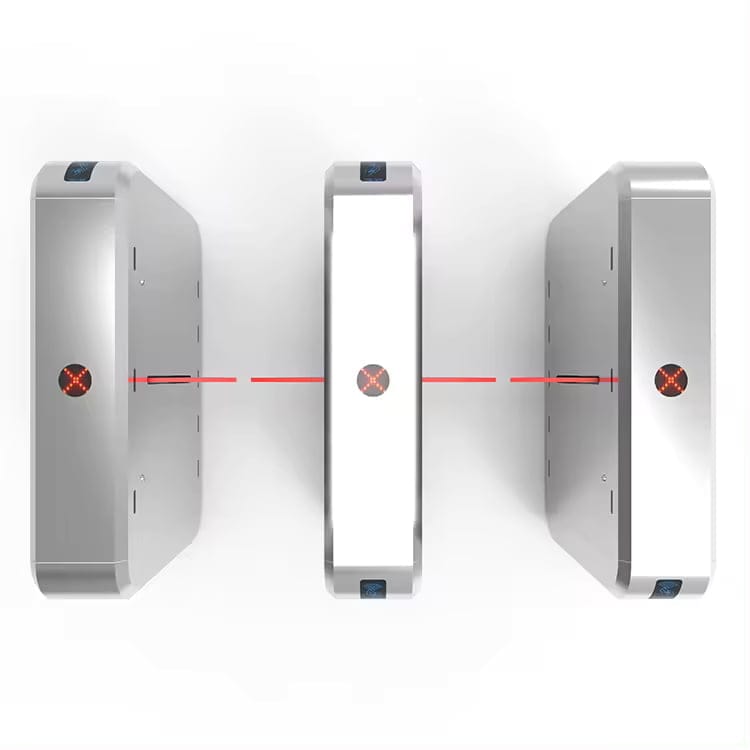

7.6—10 pairs of infrared sensors to detect the trailing and anti pinch;
8.Unique design, perfect control technology, beautiful and destinguised design, making products frequently favored by domestic and foreign high-end users.
Our Advantages:
- 13 years of access control system solution service supplier.
- Enterprise with patended technology for the whole industry of access turnstile gates.
- Enterprise with the patents for a full range of the same style of access turnstile gate.
- Possess technology enterprise certificate, ISO quality system management certification.
- The product with CE, SGS certification, and the department of public safety test report.
- Support secondary development and customization of hardware and software such as access turnstile gates, access control, face recognition, etc.
- Appearance design patent, movement utility new model patent, gate control board patent.
Product Technical Parameters
| Model Number | MR Y338 |
| size | 1400*300*1000mm |
| Material | SS304 grade stainless steel |
| Thickness of material | body cabinet 1.0mm, top of cover 1.2mm |
| Arm material | Acrylic/Glass 10mm thickness |
| Channel width | ≤1000mm |
| open gate signal input | Dry contact signals, 232 or 485 commands. |
| Unlocking time | 0.2s |
| Speed of passage | ≤35p/Min |
| Voltage input | 220V, 50H; (support adjustable) |
| environmental temperature | -25°C~+70°C |
| working environment | Indoor/outdoor (under shade) |
| MCBF | ≥5 million |
| weight | single core movement: 50KG / double core movement: 70KG |
| configuaration | one channel comes standard with 2 Astrometry air switches, 2 Meanwell switching power supplies, 2 motherboards, 2 super capacitors, and 6 pairs of infrared |
| Driving Motor | DC Servo motor or brushless motor: 24v/40w, 36v/200w, 24v/150w |
| Alarm | Illegal passage alarm, retrograde alarm, standard alarm, can be linked to the voice broadcasting, lights and other warnings, Mechanical anti-clamping, infrared anti-clamping and anti-clamping with current: |
| Advantages |
|
| Special Functions | 1. power failure open gate or power failure close gate is optional, default power failure open gate 6. Legal passage electronic booster pusher, illegal passage lock clutch. 2. support memory mode, automatic reset, free to set the passage time, support the passage of the completion of the feedback, equipment can be set remotedly more than 10 kinds of flexible configuration of the gate mode; 3. Equipment to support remote control of the pedestrian passage time settings, and real-time feedback settings; 4. Equipment to support the passage of the completion of the feedback, fault active feedback function for the gate failure, can actively upload the fault code, to achieve early warning, easy maintenance; 5. Realize early warning, convenient maintenance; 6. Through the management computer to achieve remote control door single pass open door, multi-pass open door, normally open, normally closed, fire control, return to normal, etc. |
| Secondary development |
|
Optional Access Control Solutions:

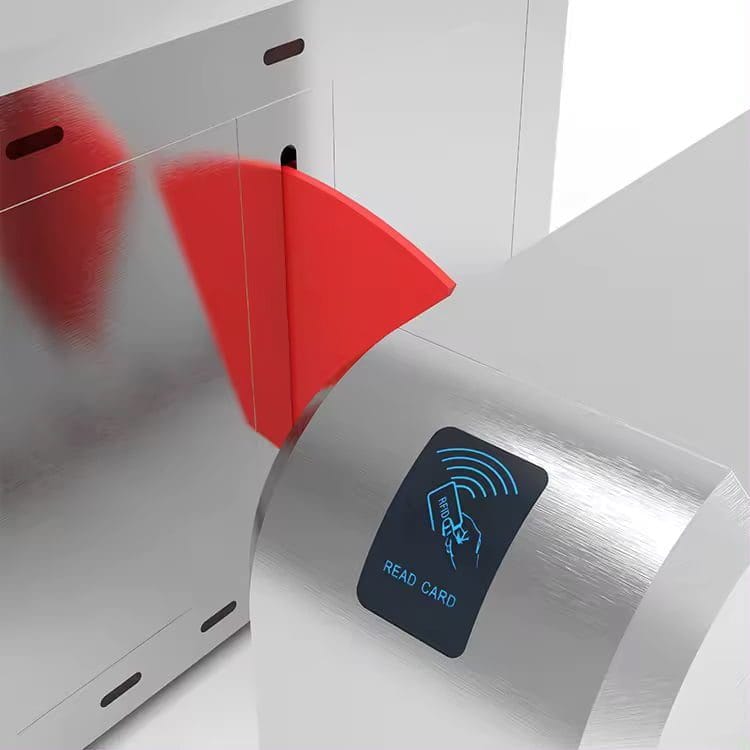

The turnstile gate can work with RFID Card, QR code, Barcode, ESD Tester. Thermometer Recognition, Face recognition, Fingerprint, Password Recognition, and other attendance device solutions.
Occasion Application:
suitable for commercial buildings, schools, GYM fitness centers or clubs, subways, airports, metro stations, IT Centre, office, college, term parts, Supermarket, Railway stations, Library, Exhibition halls, government buildings, financial, industrial, University, institutions, clubs, and other high-end places related to entrance access control solutions.
