Motorised Retractable Skylights

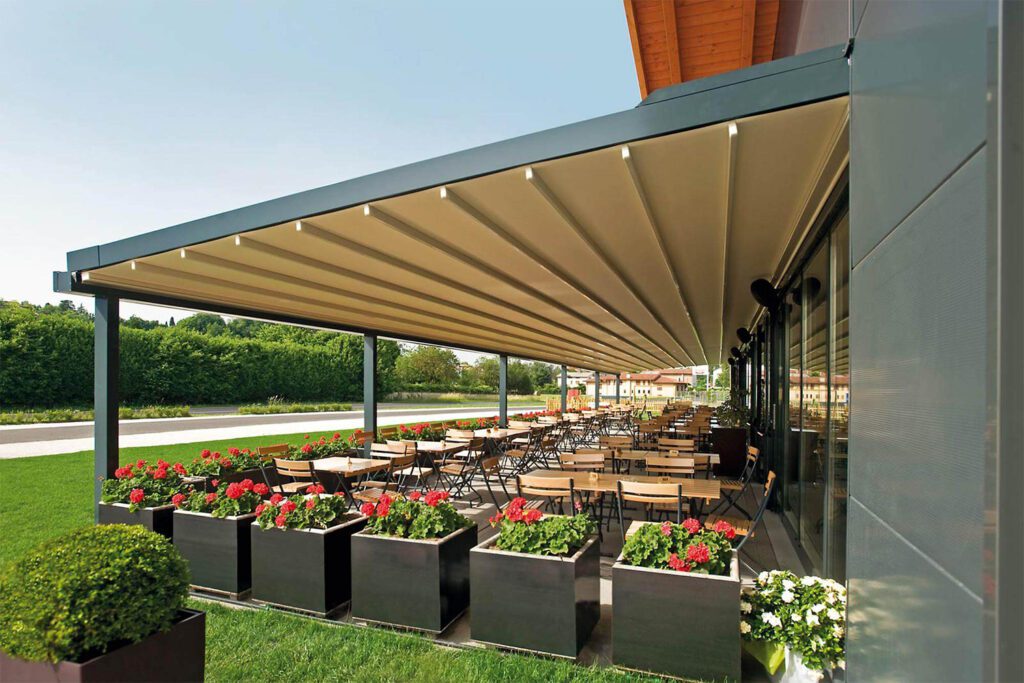

A retractable roof system allows you to enjoy the splendour of the garden or balcony space, whatever the season, and bestows you and your family shelter from rain and sunlight.

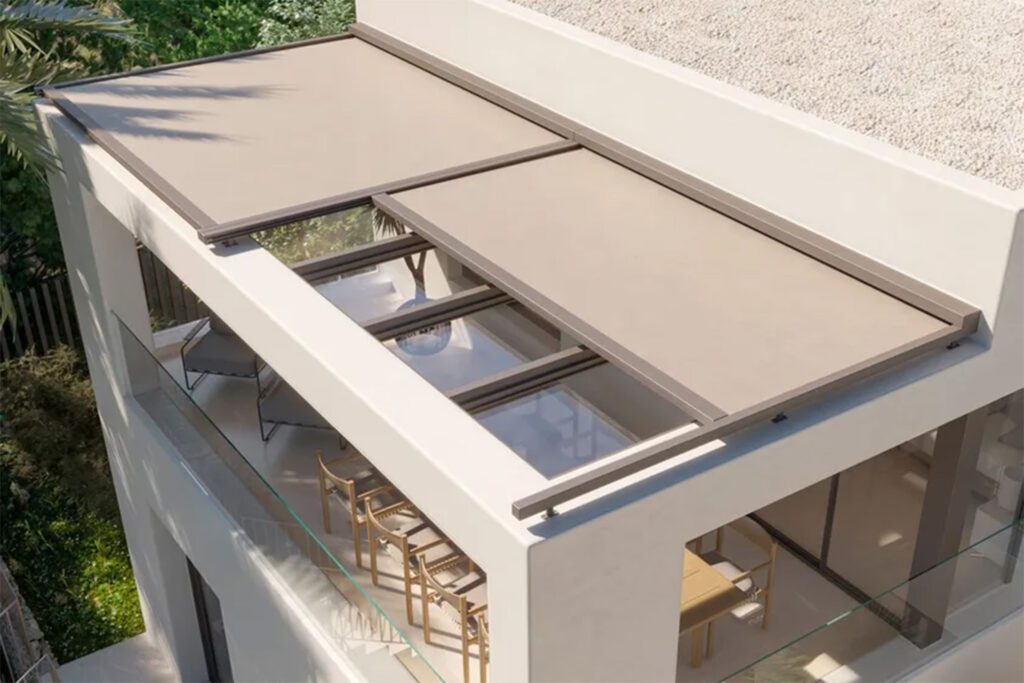

The series of fabric band sun shelters are combined with either a traditional style wooden structure, giving depth and character to the installation, or a modern powder-coated aluminum structure.
The clean manifestation allows the Roof to blend naturally with all surroundings and amalgamate into a range of design styles, from simply modern to traditional. Exclusively designed for domestic, hospitality, and commercial ventures.
Motorised Retractable Skylights

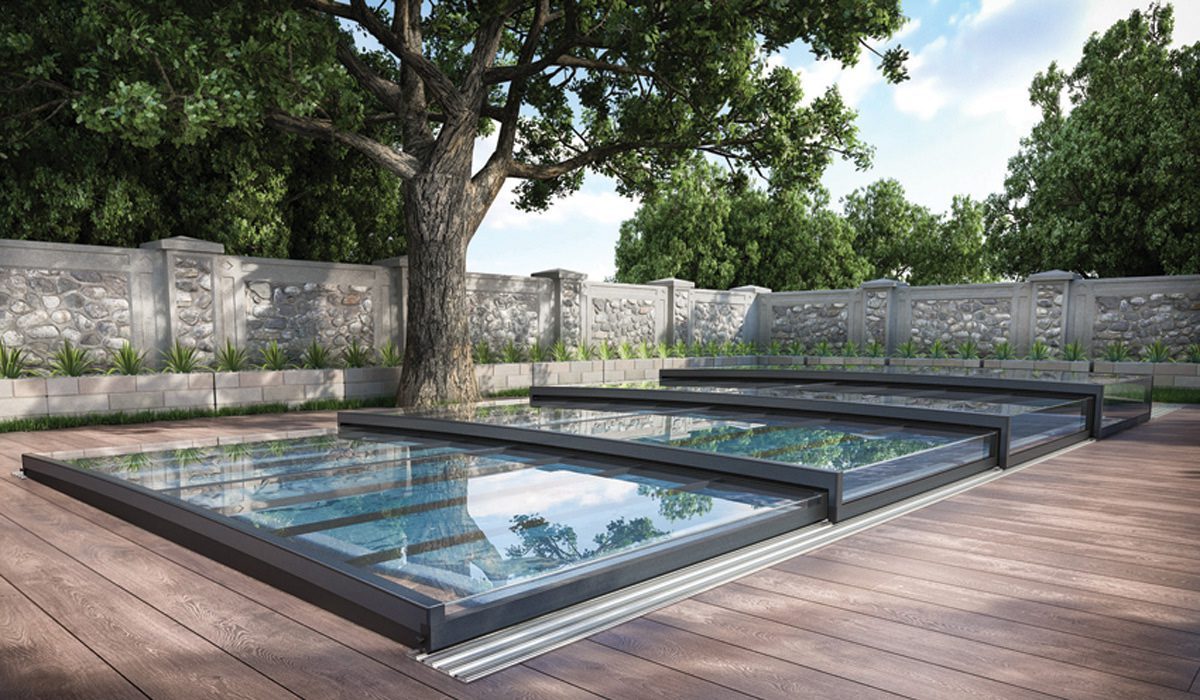

Motorised Automatic Retractable Roof Skylights open up for maximum fresh air, circulation, and unmatched views. While single slope or double pitch configurations are the most common, retractable skylights can be designed in a wide variety of custom configurations as well. MR.TECH Retractable Skylights can be enlarged and altered, depending on pitch, size, and design requirements to meet almost any structural or aesthetic need.

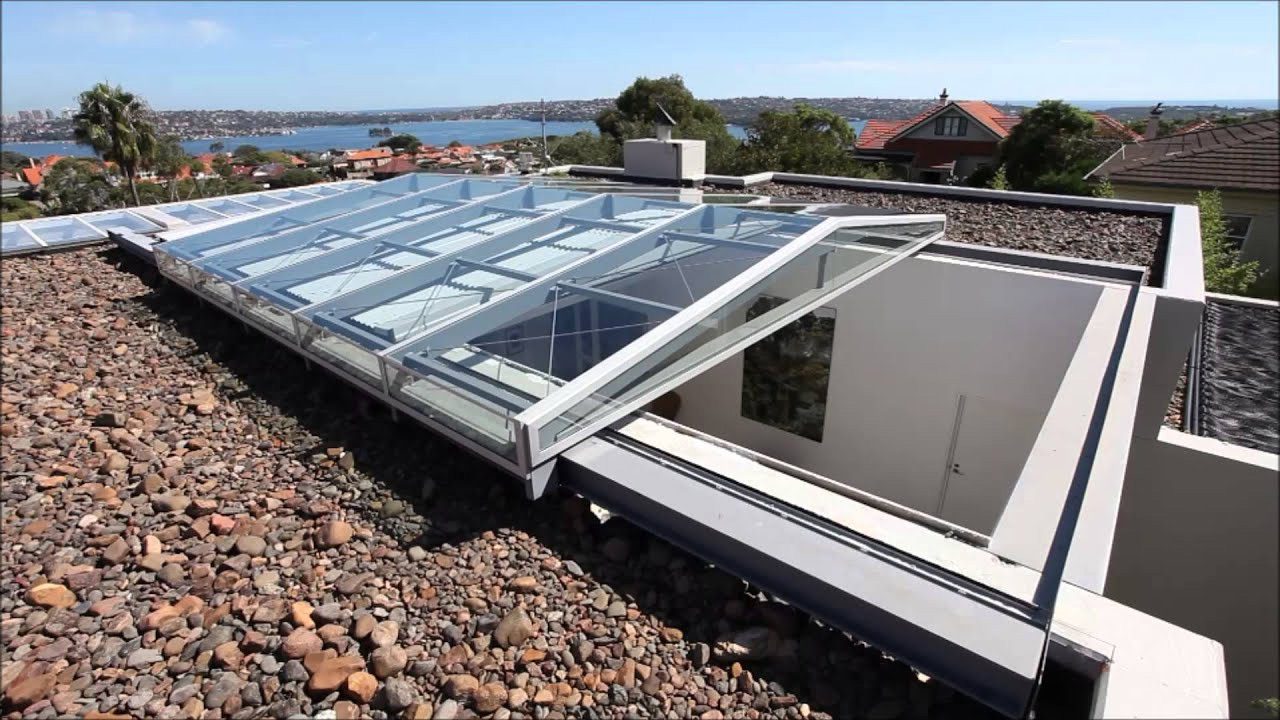

Retractable Skylights offer a bold statement for any residential or commercial application, and can be installed in a traditional construction roof, an existing glass structure, or designed as part of a MR. TECH structure, such as pool houses, pool enclosures, greenhouses, sunrooms, or conservatories. Screens are often added to retractable skylights to prevent insects from entering the building.
Automatic Residential Retractable Skylights
Retractable Skylights offer a unique and dramatic element that can be incorporated into any home. Providing both beneficial daylight and increased ventilation, skylights are believed to improve the health and productivity of occupants. The wide range of motorization control options, including wireless remotes, allow Retractable Skylights to blend seamlessly into the design of a residence.

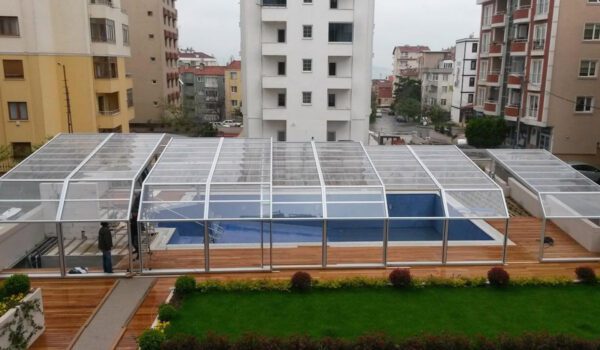

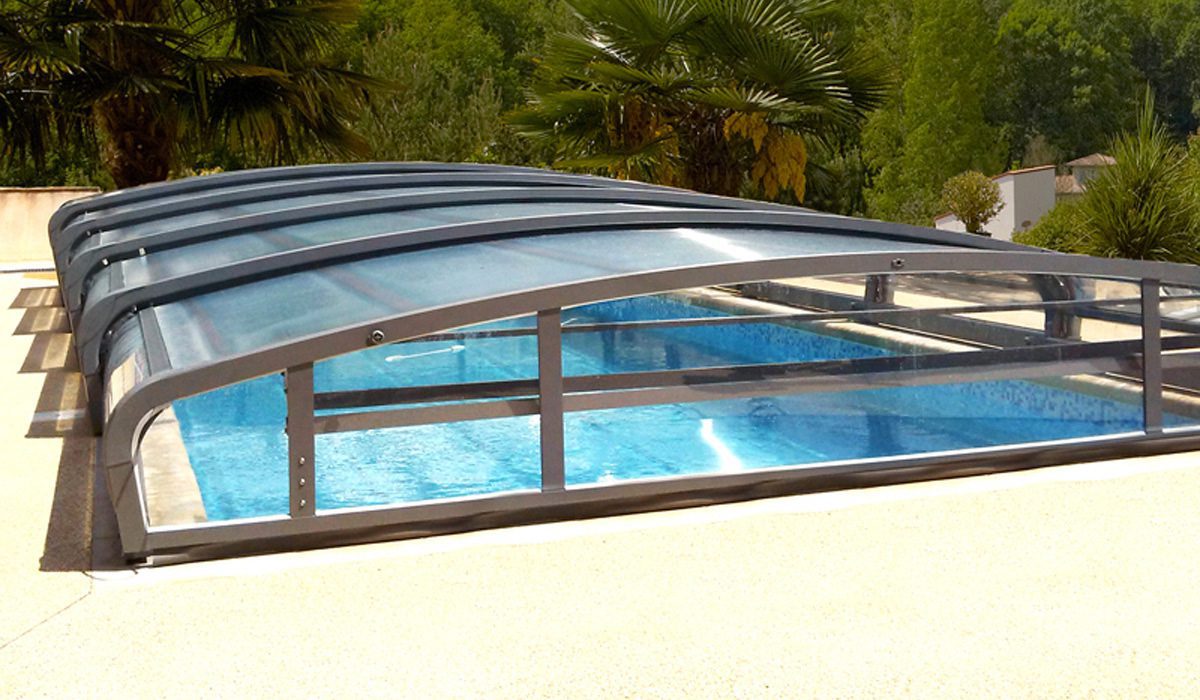

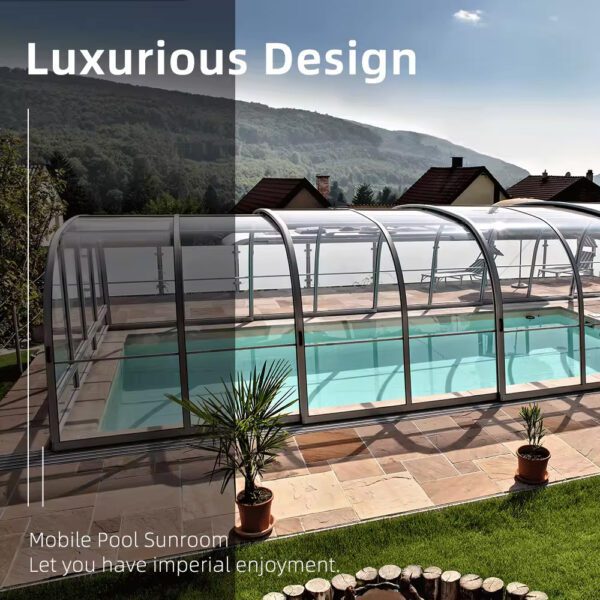

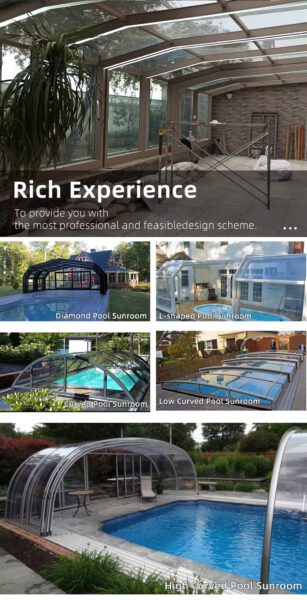

Residential Greenhouses and Pool Enclosures are common applications for Retractable Skylights. When incorporated into a glazed or traditional material structure, Retractable Skylights serve a dual purpose of aesthetically pleasing skylight and operable venting system.
Automatic Commercial Retractable Skylights
Retractable Skylights can benefit any commercial environment by providing a unique customer experience. Natural daylight, fresh air, and circulation are all beneficial to occupants, providing a more positive environment. Offices with natural light show increased productivity and well-being of employees. Retail stores can use skylights to highlight products in a clean, bright setting, and restaurants offer a unique dining experience with Retractable Skylights that customers will keep coming back for.
Automatic Commercial Retractable Skylights
Retractable Skylights can benefit any commercial environment by providing a unique customer experience. Natural daylight, fresh air, and circulation are all beneficial to occupants, providing a more positive environment. Offices with natural light show increased productivity and well-being of employees. Retail stores can use skylights to highlight products in a clean, bright setting, and restaurants offer a unique dining experience with Retractable Skylights that customers will keep coming back for.
 |  |  |  |
| Remote Control Traditional remote control allows you to operate the system easily & quickly | Voice Command Operate your system by simple voice command | Wireless Light Control Experience the latest light technology and break the boundaries of controlling your light wherever you are | MyLink Enable control of all motorized systems on application |

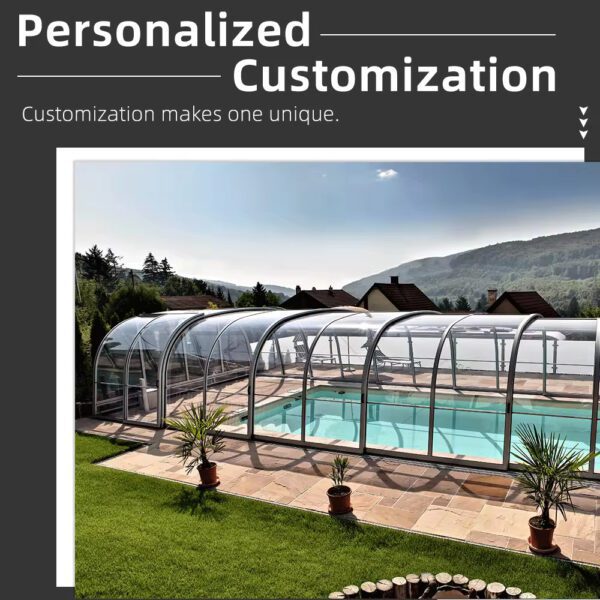

Skylights Custom Options
Retractable Roof Skylights offer a myriad of customization options: size, color, and control systems, all of which can be designed to suit the customer’s needs. Customers are able to add several features to their retractable skylights, including screens for insect control, rain sensors to automatically close the skylights if inclement weather is detected, or wireless remote control systems for the convenience of the owner. Up to four independent skylights can be controlled by one wireless or hardwired remote control unit.
As with each of our products, we are able to provide one of the largest customization ranges in the industry. Standard, designer, and custom match finishes are available, including paint and anodized options. Dual color or dual finish options are possible. In addition, several custom cladding options of Copper, Brushed Stainless Steel, and Simulated Lead Coated Copper are available. Decorative options, such as ridge cresting, finials, and moldings can be incorporated into skylights. MR. TECH Automation offers glass, polycarbonate, and acrylic options in several tints to satisfy numerous aesthetic palettes.

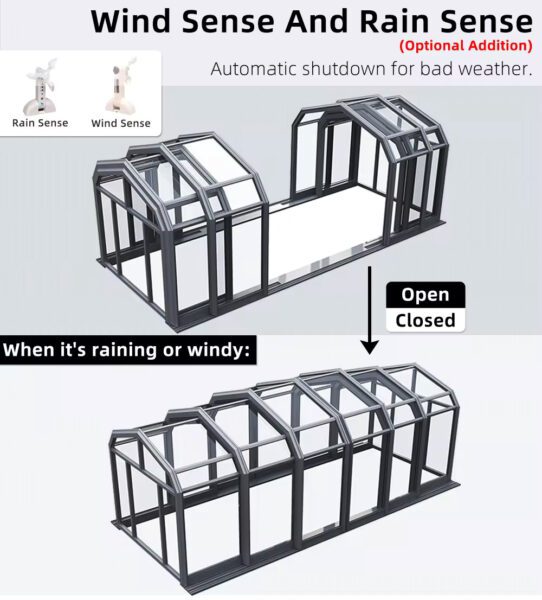

Automatic Rain Sensors
Rain sensors are a common retractable skylight accessory; when it begins to rain, a sensor detects the moisture and automatically closes the skylight. The multistage retractable skylight is motorized, utilizing a built-in motor and electronic brakes, which prevents the skylight from sliding backwards once the unit is closed.
| Waterproof | Our sunroom system has perfect seal technology. For all bad weather conditions, we provide a waterproof comfort zone. |
| Four Season | We maximize our clients’ lifestyles all year round. We extend your living areas and create gathering spaces day and night. |
| Remote Controlled | Our motorized Sunroom system can be controlled remotely and on the app. We break boundaries and create access to our smart system wherever you are. |
| Bad Weather & UV Resistant | Low-E glass will significantly reduce the amount of heat transfer, and the low-E coating as well as block UV lights. |
Features
- Rain Protection
- Ventilation
- Control light and shade
- Control solar heat
- Can withstand strong wind loads
- Increased privacy – no uninvited visitors
- Wide range of electromechanical operators for the sky lights up to 3000kg weight
- Control to stop anytime while the gate is moving
- Works on Precise machine cut toothed pinion along with galvanized rack & chain with wire rope arrangement
- These automatic sky lights are widely used and an Economical option among all the types of sky lights
- Sliding motorised roof system consisting of 3 or 4 glazing panels; the roof can be opened to two thirds or three quarters of its total width as the topmost panel is fixed and cannot be moved
- Our skylights are available in single side or double side sliding, suggested to suit actual site condition
- This exclusive Tender system permits maximum flexibility of use, as each pair of modules can be opened and closed independently
- Sky lights are available in single side or double side telescopic sliding(multi telescopic 2,3,4,5,6,7,8,9) suggested to suit actual site condition
- Bottom rail made up of polished bright bar(aluminium, stainless steel) which is supported by a heavy duty beam
- Bottom steel with nylon rollers with bearings are used for smooth operation
- Various residential, commercial & industrial sky light designs available to suit the client’s choice
- Quick release disengaging mechanism inside sliding sky lights enables changeover to manual operation in case of power failure
- Optical beam sensor: Safety device to detect presence of reversal of gate movement
- It can be integrated with any kind of access controller system, i.e., RFID device, Fingerprint and Biometric devices, Remote, card dispenser, and Push button, etc…
Technical Specifications
| PRODUCT | Motorised Retractable Roof |
| Width Min./Max. | Single Leaf: 600/12000mm Double Leaf: 1200/24000mm |
| Height Min./Max. | 500/3800mm Larger Dimension on request |
| Telescopic Width Min./Max. | Single Leaf: 600/16000mm Double Leaf: 1200/32000mm |
| Telescopic Height | 1000/4800mm |
| Min./Max. | Larger Dimension on request |
| Opening Direction | Horizontal |
| Mounting Location | Inside/ Outside (retractable roof) |
| Mounting Surface | Bottom Rail: RCC |
RETRACTABLE DESIGN
| Pattern | Standard Steel Tubular pattern or Customised Fabrication design |
| Internal vertical member | Heavy Duty Vertical and Horizontal Box sections (or Customized design available on request) |
| Bottom Rail | Polished bright bar(round) with beam or C-channel support, Dual track bottom rail for large opening gates as per design, (Aluminium, Steel, Galvanised steel, Stainless Steel) |
| Bottom Rollers | Heavy Duty Bottom Nylon Wheel with both side bearings and Wheel cups, (Galvanised Steel, Stainless Steel) |
| Glazing Sheet | Solid Compact Polycarbonate Sheet available in various colours & sizes |
| Embossed Sheet | Solid Embossed Polycarbonate Textured Sheets with Ultra Violet Coated |
| Multiwall Sheet | Multiwall Polycarbonate Sheets with high quality of Ultra Violet Resistance, Solar Control, Weather Ability |
Applications
PATTERNS / DESIGNS
| Other available gate material | Stainless Steel, Aluminium Steel, Galvanised Steel |
| Sheets | GI, Aluminium sheets, Polycarbonate, Acrylic, PVC Sheet, Glass, Wood, WPC Wood, Fundermax panels |
| Ornamental Designs | On Request or as per client or architect design. |
| Options Available | Spikes as per requirement Any type of Customized Design can be made on request. |
FINISH
Surface Finish
- Standard: Primer Finish
- Optional: Enamel Painting/Duco/PU painting/ Powder coating/ Hot deep Galvanising
DETAILS FOR AUTOMATION SYSTEM
Drive Unit
- Imported & Indian make electromechanical drive having features such as powerful startup & thermal sensors
Single (A.C & D.C)/Three Phase
Emergency Operation
- Manual release knob
Accessories (Optional)
- Operational Accessories, Additional Push Button, Key switch, Remote Control with receiver, Magnetic Loop Detector
- Safety Accessories, Safety Photocell, Vertical Safety Edge Sensor, Indicative Accessories, Flashing Light
